Oil Company Substation 4600 Level 150 Generator DWG Plan layout

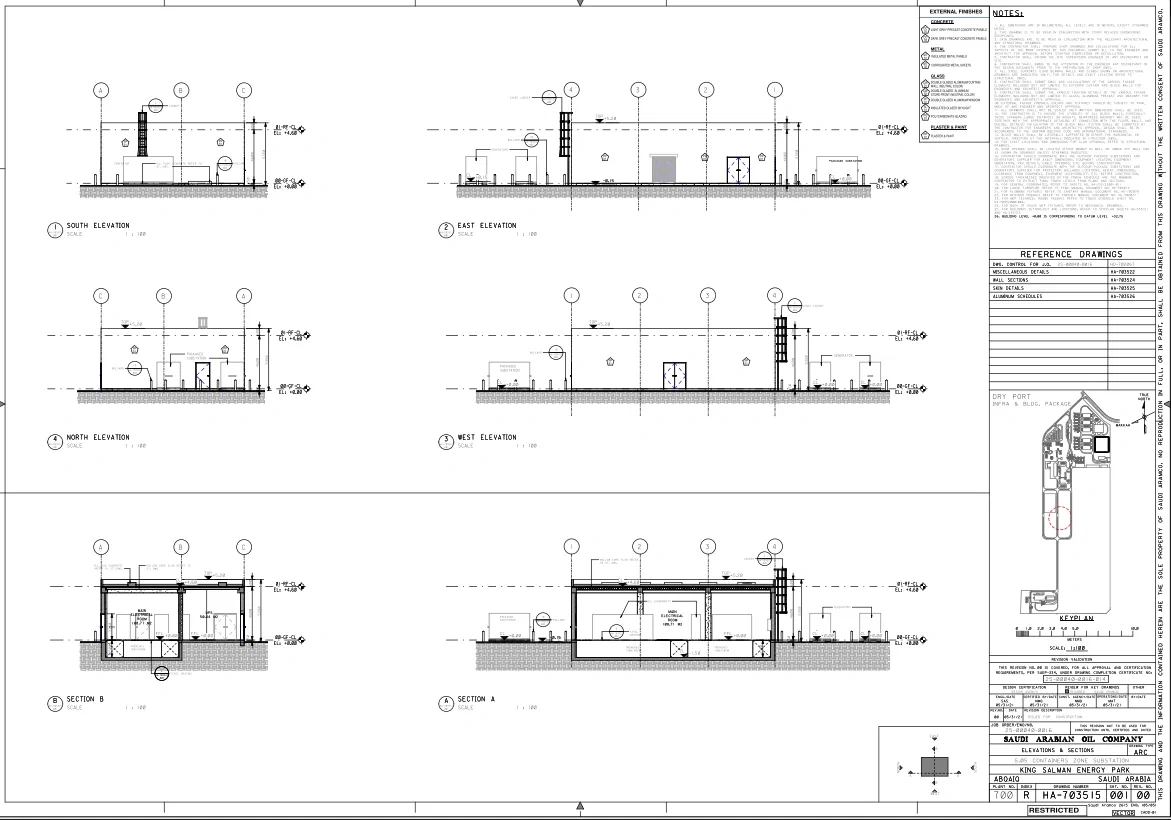

 This AutoCAD DWG file presents an oil company containers zone substation layout with detailed elevations and sections, including south elevation, north elevation, east elevation, west elevation, and sectional views A and B. The drawing defines structural levels such as ground floor level plus 0.00, roof level at plus 4.60, and top elevation at plus 5.20. It includes packaged substations, generators with a 150 capacity reference, a UPS room of 50.44 m2, and a main electrical room of 108.71 m2. The design incorporates trench systems sized 150x150 cm with steel grating, hollow core slab construction, RC pad foundations, bollards for safety, and caged ladder access. External finishes include precast concrete panels, insulated metal panels, plaster paint surfaces, aluminum glazing systems, and skylight elements. This oil company's substation DWG is ideal for architects, civil engineers, and electrical professionals requiring accurate infrastructure drawings for construction.
