Steel Beam Column Connection Detail ISMB200 SHS100x100 DWG File

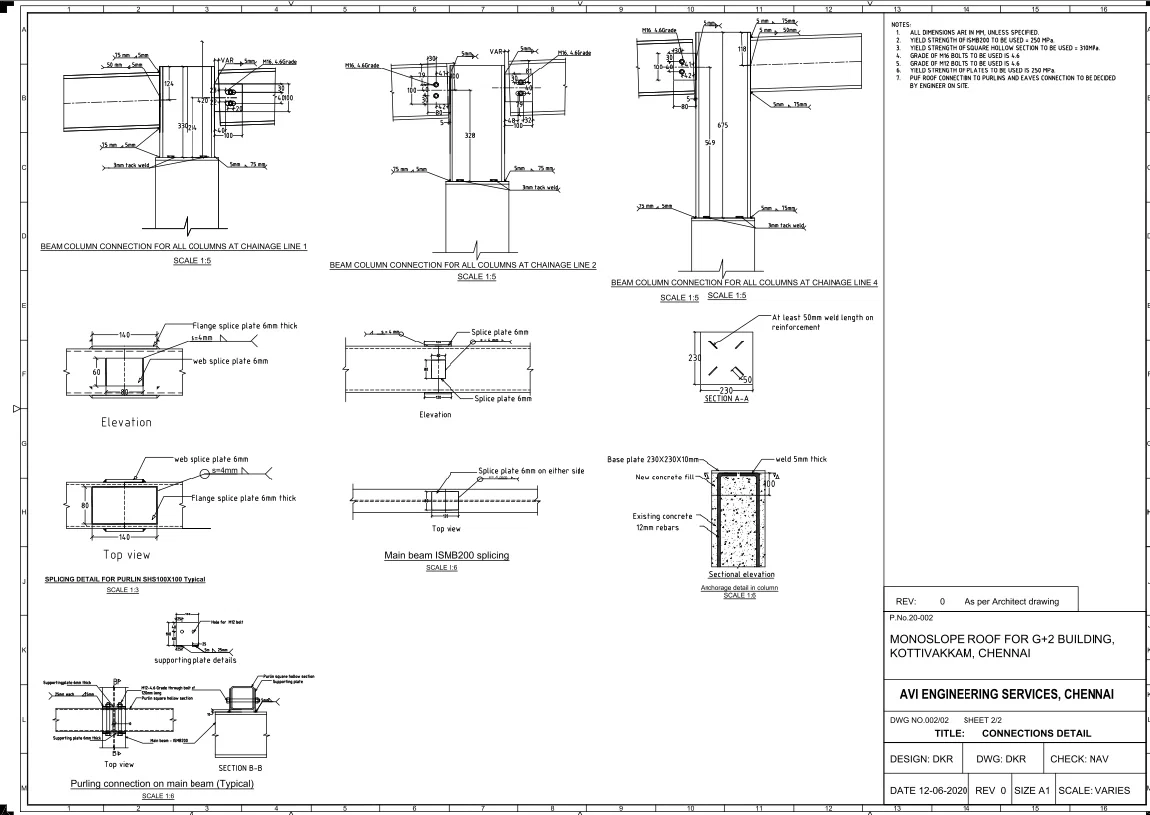

This AutoCAD DWG file presents detailed steel beam column connection drawings designed for structural applications in a monoslope roof G plus 2 building project. The drawing includes multiple beam column connections at chainage lines 1, 2, and 4 with precise dimensions, weld sizes, and plate thickness specifications. It also covers ISMB200 main beam splicing details, SHS100x100 purlin splicing typical connection, and purlin connection on main beam with supporting plate details. Anchorage detail in column with base plate size 230x230x10 mm, weld thickness, and reinforcement specifications are clearly illustrated. All drawings are provided with standard scales such as 1:5, 1:6, and 1:3, ensuring accuracy for fabrication and site execution. Notes include material grades, bolt specifications, and weld requirements, making this DWG file highly useful for architects, civil engineers, and structural designers working on steel structure projects.
