Residential Lintel Beam Detail 9x6 4x6 Reinforcement DWG File

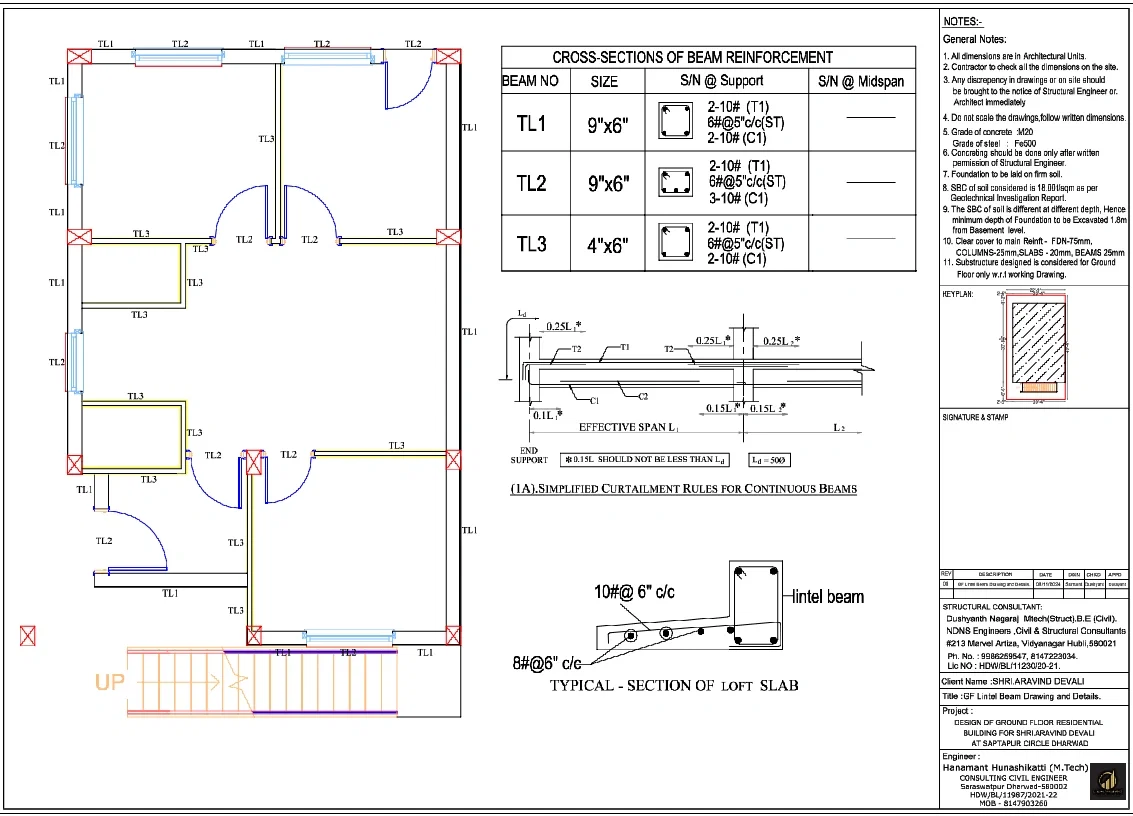

This AutoCAD DWG file provides detailed residential ground floor lintel beam drawings with complete reinforcement specifications and layout planning. The drawing includes beam types TL1 and TL2 with size 9x6 inches and TL3 with size 4x6 inches, along with reinforcement details such as 2-10 mm bars at the top, 2-10 mm bars at the bottom, and stirrups 6 mm at 5-inch center-to-center spacing. The file also covers cross sections of beam reinforcement at support and midspan positions, ensuring structural accuracy. A typical section of loft slab is included with reinforcement details 10 mm at 6 inch c to c and 8 mm at 6 inch c to c connected with a lintel beam. Simplified curtailment rules for continuous beams showing effective span L development length Ld equal to 50d and spacing like 0 point 25L and 0 point 15L are clearly illustrated. General notes specify M20 grade concrete, Fe500 steel clear cover values, and foundation considerations. This DWG file is highly useful for architects, civil engineers, and designers working on residential structural detailing projects.
