Residential House Elevation DWG 3-Story with Detailed Openings

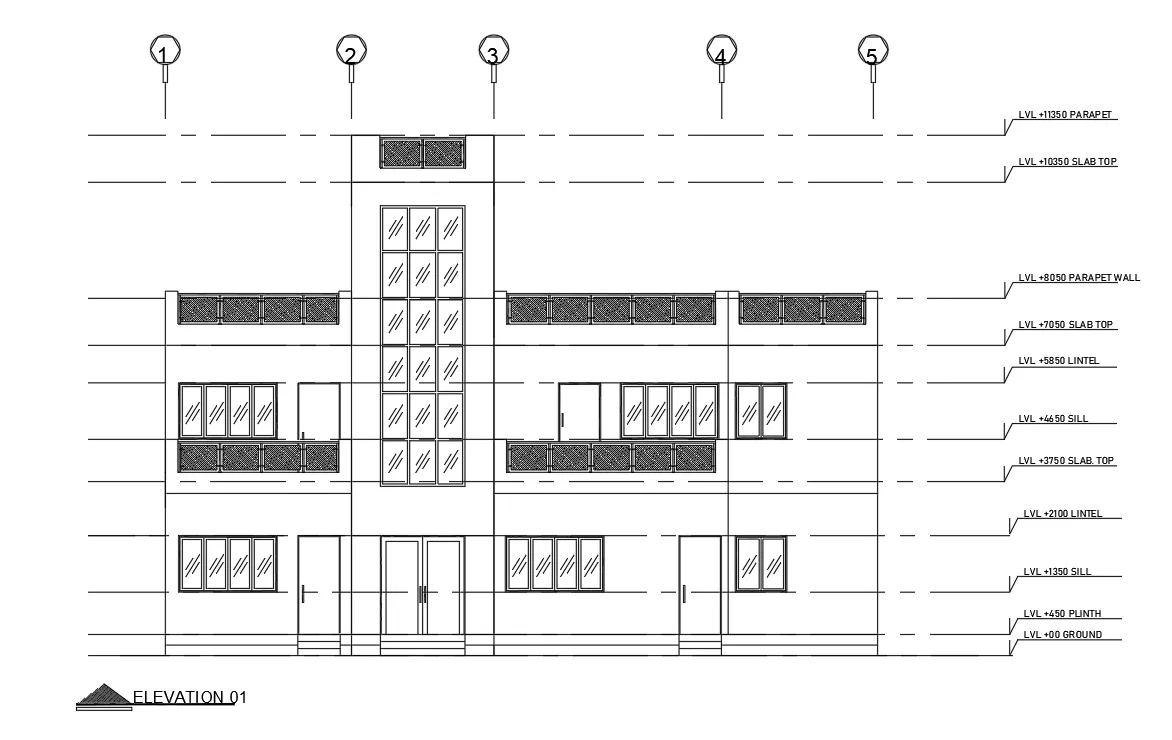

Residential house elevation AutoCAD DWG file shows a 3-story building with detailed floor levels including plinth at +450, ground at +00, sill levels at +1350 and +4650, lintel levels at +2100 and +5850, slab tops at +3750, +7050, and +10350, and parapet levels at +8050 and +11350. The drawing includes doors D1 950x2100, D2 1200x2100, D3 750x2100, D4 1800x2100, and windows W 1550x1200, W1 650x1200, W2 520x1200. Precise placement of openings, plinths, lintels, and slab levels is provided. Ideal for architects, interior designers, civil engineers, and builders, this DWG is compatible with AutoCAD, Revit, SketchUp, and 3ds Max for professional planning, visualization, and construction workflow.
