ARS Staircase Beam Plinth Slab Layout DWG Doctor Farm Houses

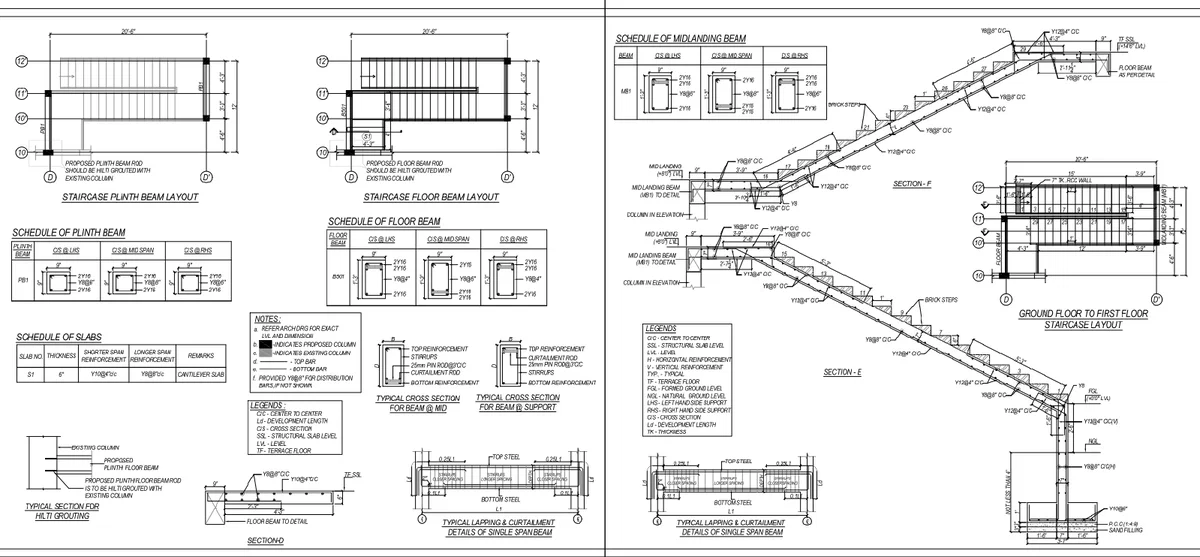

ARS Doctor Farm House staircase AutoCAD DWG file provides detailed plinth and floor beam layouts, slab schedules, and structural reinforcement details. The drawing includes staircase plinth beams (PB1), floor beams (B501), midlanding beams (MB1), cantilever slab S1, and typical lapping and curtailment of single span beams. All reinforcement is specified with top and bottom steel bars, stirrup spacing, pin rods, and proper cover as per IS 456-2000 and IS 1786-1985 standards. Detailed sectional layouts from ground floor to first floor include brick steps, column elevations, and levels from FGL +0’0” to terrace floor +14’6”. Hilti grouting for the proposed plinth and floor beam rods with existing columns is also included. Ideal for architects, structural engineers, civil engineers, and builders, this DWG is compatible with AutoCAD, Revit, SketchUp, and 3ds Max for precise construction planning, structural verification, and professional workflow.
