Proposed Resident Hospital Brick Work Layout DWG Fourth Floor Plan

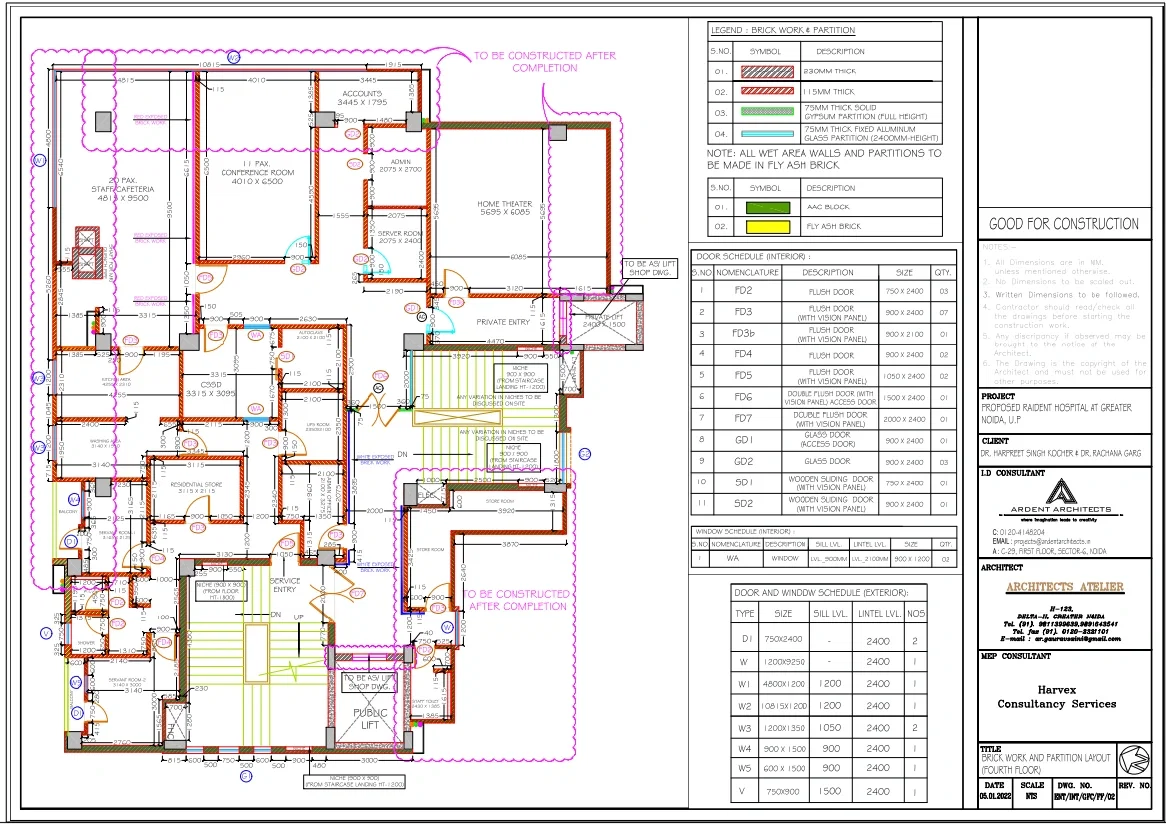

Proposed Resident Hospital fourth floor brick work and partition AutoCAD DWG layout includes detailed room planning with precise dimensions, such as staff cafeteria 4815x9500, conference room 4010x6500, accounts 3445x1795, admin 2075x2700, server room 2075x2400, home theater 5695x6085, CSSD 3315x3095, kitchen area 4255x2310, residential store 3115x2115, and washing area 3140x1950. The drawing provides door and window schedules, including sizes like D1 750x2400, W1 4800x1200, W2 10815x1200, and partition details with 230mm, 115mm brick walls, 75mm gypsum partitions, and aluminum glass partitions. It also includes lift areas, service entry, shafts, and construction notes for fly ash bricks in wet areas. This DWG is ideal for architects, interior designers, civil engineers, and builders for accurate planning, detailing, and execution workflows.
