Residential Layout DWG First Floor Plan 12 6 Living Dining Balcony

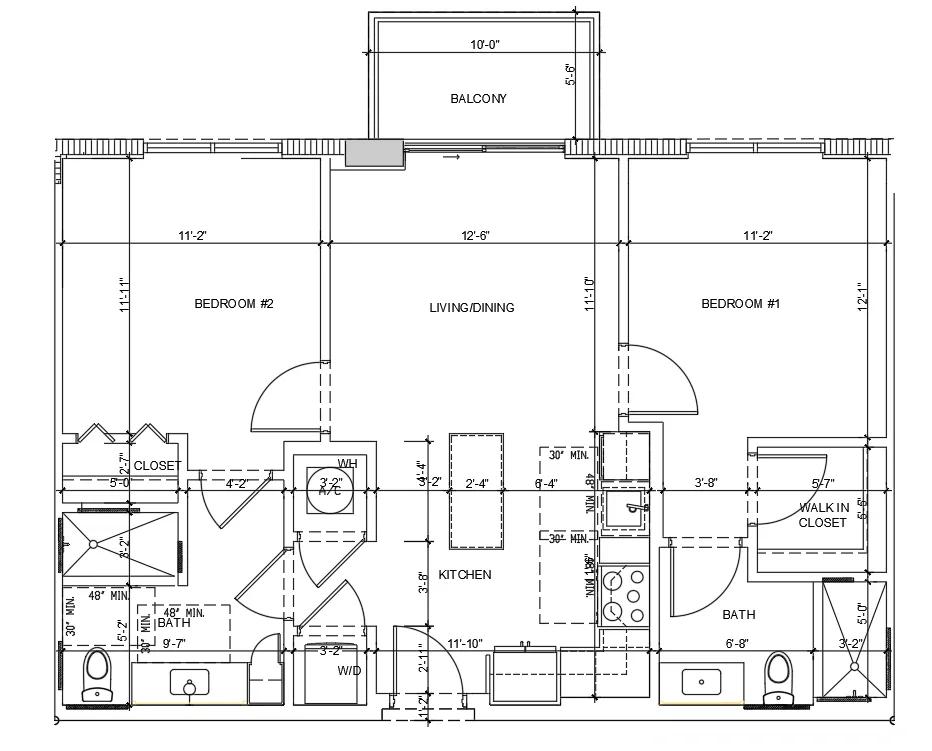

This AutoCAD DWG file presents a detailed residential layout first-floor plan featuring a 2-bedroom configuration with accurate room dimensions and space planning. The layout includes a spacious living-dining area measuring 12 6 connected to a balcony sized 10 0 x 5 6 providing extended outdoor space. Bedroom 1 and bedroom 2 are designed with dimensions around 11 2 and 11 2, ensuring comfortable accommodation along with closets and walk-in closet spaces measuring 5 7. The kitchen area is efficiently planned with a length of 11 10, including clear working zones and circulation space. Two bathrooms are included with dimensions such as 6 8 and 9 7 along with utility spaces like W D and WH units for service efficiency. Internal passage widths such as 3 2, 3 8 ensure smooth movement across the layout. This DWG file is suitable for architects and designers requiring a complete first-floor residential layout with a balcony and detailed dimension planning.
