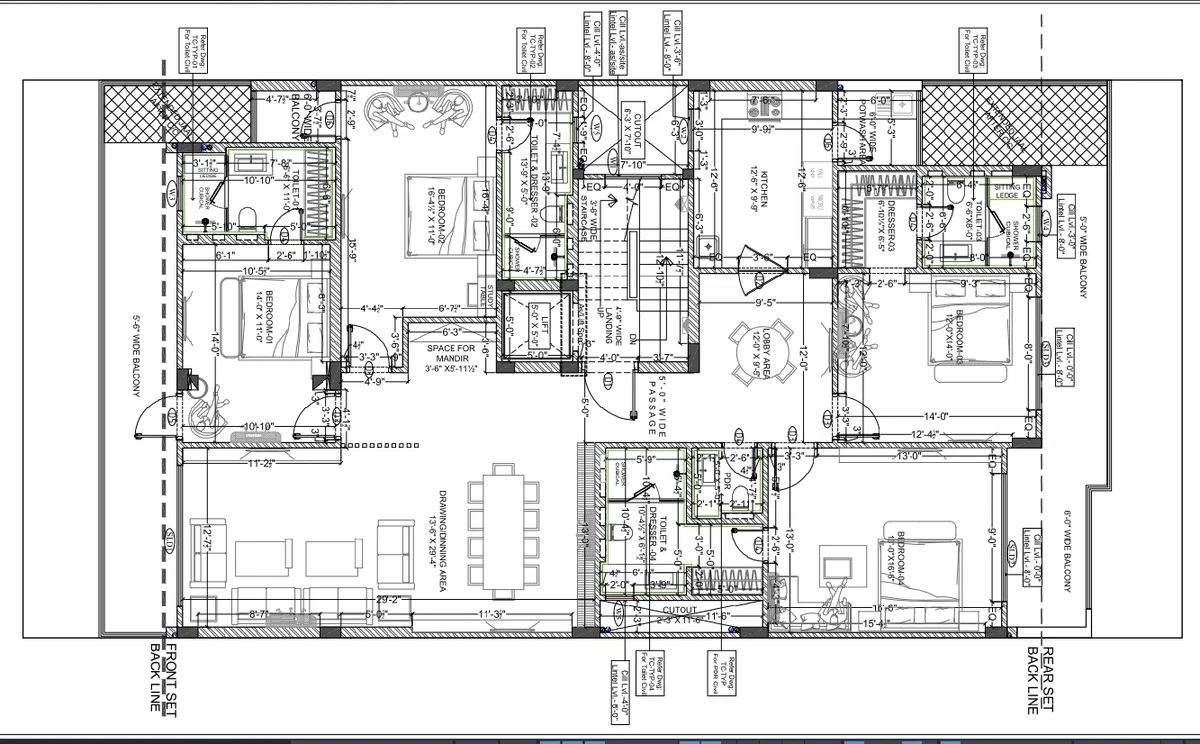

Residential typical floor civil plan with full dimension layout

This residential typical floor civil plan drawing provides a complete and well-structured layout with precise dimensions in feet and inches, making it highly useful for architects, civil engineers, interior designers, and builders. The plan includes multiple bedrooms, such as 13 ft 0 in x 16 ft 6 in, 12 ft 0 in x 14 ft 0 in, and 14 ft 0 in x 11 ft 0 in, along with a large drawing dining area of 13 ft 6 in x 29 ft 4 in and a kitchen sized 12 ft 6 in x 9 ft 9 in. It features detailed toilet and dresser combinations like 6 ft 6 in x 8 ft 0 in and 10 ft 4.5 in x 6 ft 11 in, ensuring efficient space utilization. The layout also includes balconies ranging from 5 ft to 6 ft in width, a 6 ft wide passage, a 3 ft 6 in wide staircase, and a lift provision for vertical circulation. Additional planning elements such as a lobby area of 12 ft 0 in x 9 ft 5 in, mandir space of 3 ft 6 in x 5 ft 11.5 in, pot wash area, and ventilation cutouts, are clearly defined. Standard construction details like lintel height of 7 ft 0 in and floor to ceiling height of 8 ft 6 in are also included, ensuring practical execution and accurate site implementation.
