Architectural Bungalow Layout DWG Plan Elevation Roof Detail

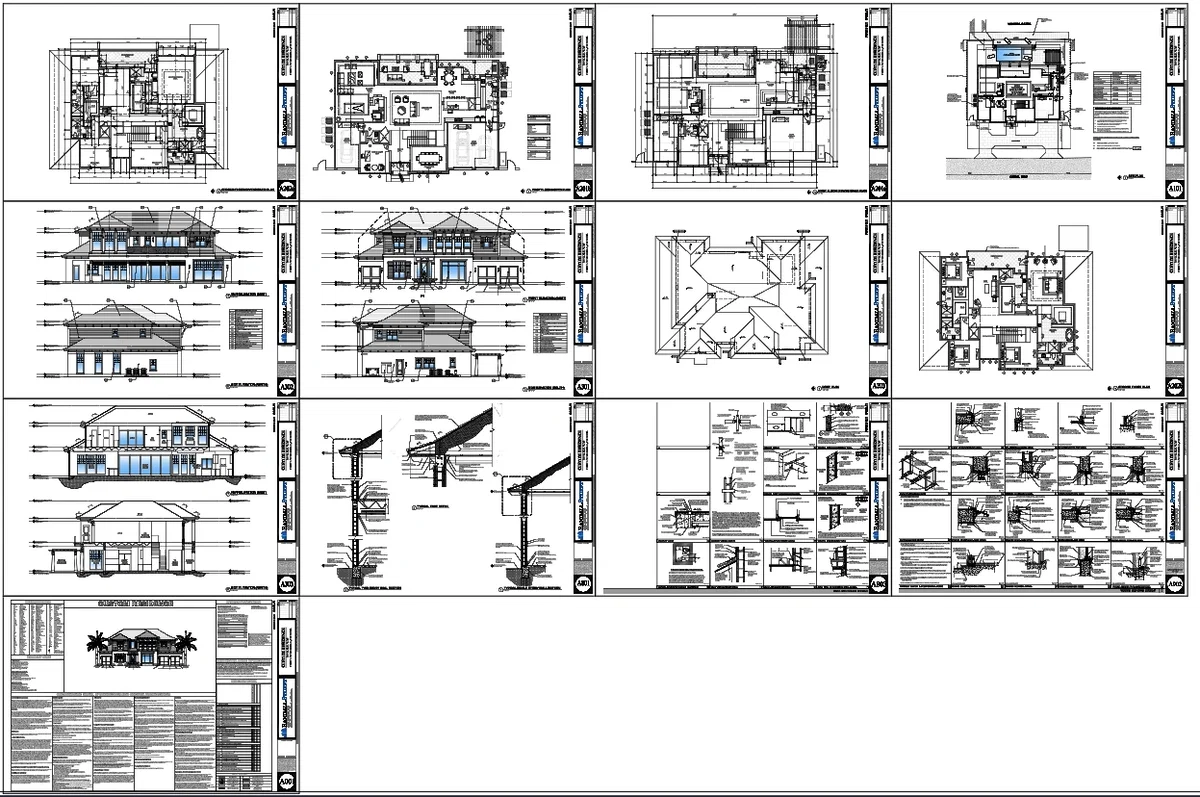

This AutoCAD DWG file presents a complete architectural bungalow layout with detailed floor plans, elevations, sections, and construction details. The drawing includes a well-planned ground floor layout with clearly defined living areas, bedrooms, kitchen, dining space, garage, and circulation zones, along with precise wall dimensions and structural alignment. It also features first-floor or upper-level planning with room configurations and access points. Exterior elevations showcase front, rear, and side views with accurate height proportions, window placements, and facade detailing. The file further includes roof layout drawings with slope design, ridge lines, and drainage planning. Sectional details illustrate wall construction, roof junctions, and foundation connections for better execution clarity. Additional sheets provide architectural construction details, material specifications, and dimension annotations to support accurate planning and residential bungalow development.
