Residential Electrical Drawing 20x19 Living 12x12 Kitchen DWG

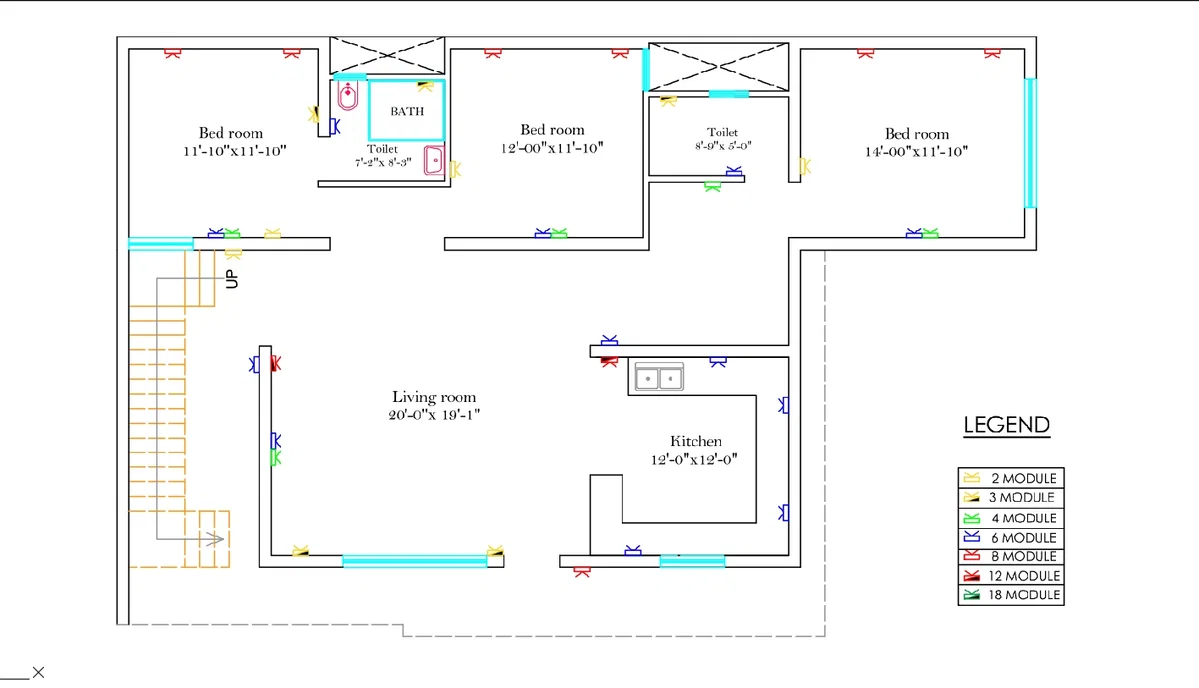

This AutoCAD DWG file presents a detailed residential electrical drawing layout, including room-wise electrical planning with dimensions such as living room 20'-0"x19'-1", kitchen 12'-0"x12'-0", bedrooms 11'-10"x11'-10", 12'-0"x11'-10", and 14'-0"x11'-10", along with toilet and bath areas sized 7'-2"x8'-3" and 8'-9"x5'-0". The drawing includes electrical point placements with module configurations such as 2 module, 3 module, 4 module, 6 module, 8 module, 12 module, and 18 module as per legend. It specifies installation heights like 4 feet from floor level, 2 feet 6 inches for bed wall points, and 6-8 inches above the kitchen platform. The layout also shows switchboards, socket points, and circulation areas with staircase positioning. This DWG file is useful for accurate electrical planning and layout coordination in residential building projects.
