Beam Strengthening Slab Detail AutoCad DWG 9000 8475 Grid Plan

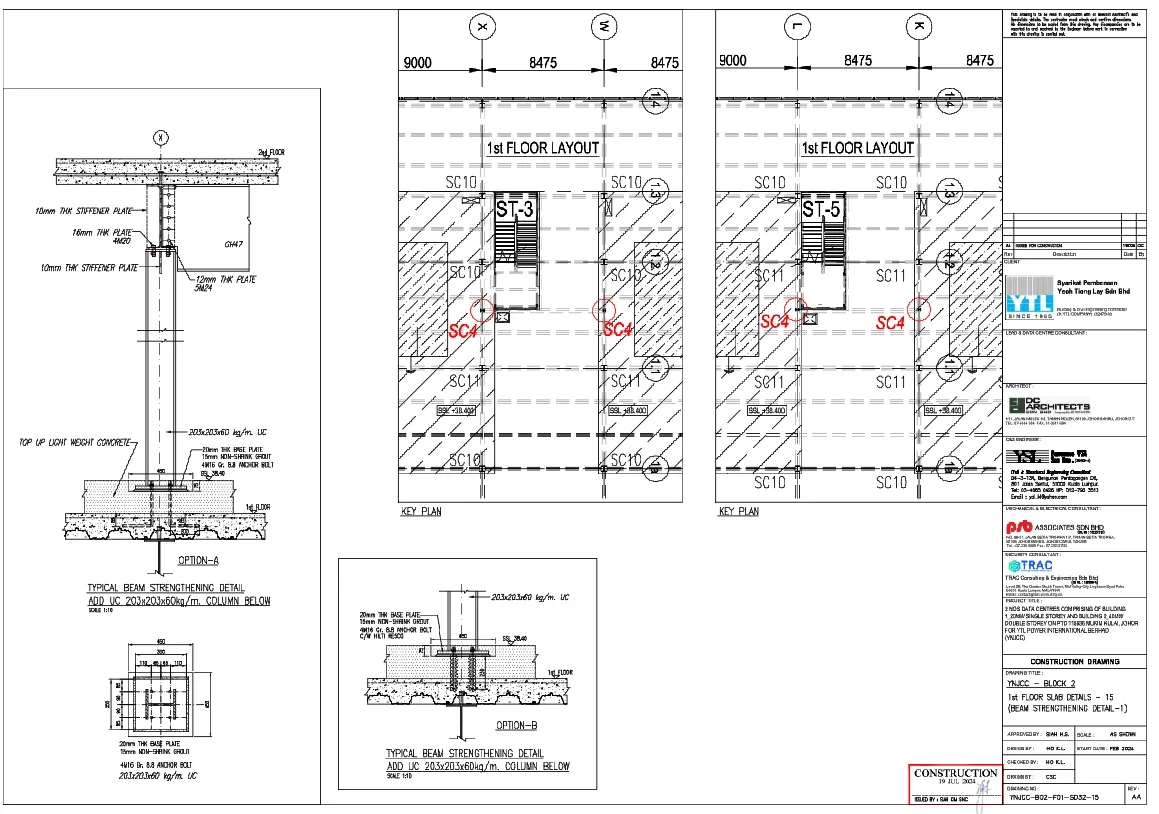

This beam strengthening slab detail DWG file provides a comprehensive structural drawing, including first-floor layout grids of 9000 mm and 8475 mm spacing, along with detailed slab and beam strengthening sections. The drawing clearly shows stair core positions marked as ST3 and ST5 with slab zones SC4 and SC10, ensuring proper structural load distribution. It includes typical beam strengthening details with UC sections sized 203x203x60 kg per meter connected to columns below using 20 mm thick base plates, 16 mm thick plates, 10 mm thick stiffener plates, and 12 mm thick plates with anchor bolt connections and non-shrink grout. Two detailed options are provided for beam strengthening implementation, showing connections at slab and column junctions. The file also highlights loft slab and base plate arrangements with precise dimensions and reinforcement detailing for real construction execution. This AutoCAD DWG drawing is ideal for structural engineers, architects, and construction professionals for accurate slab beam strengthening design and site implementation.
