Hotel Connection Detail DWG Shura Island Thai Plate Anchor Plan

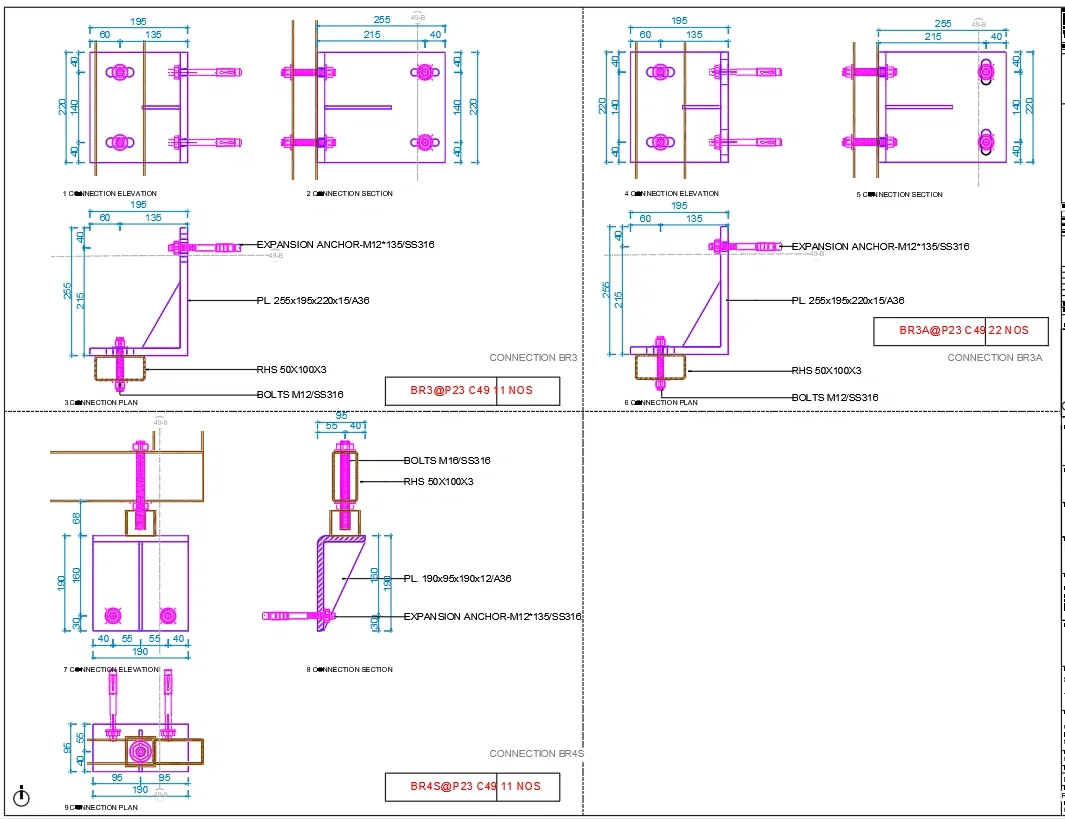

This hotel connection detail DWG file presents precise structural bracket and anchor connection drawings for the Shura Island Thai hotel project with multiple connection types, including BR3, BR3A, and BR4S. The drawing includes detailed connection plans, elevations, and sections with plate sizes such as 255x195x220x15 mm and 190x95x190x12 mm using A36 steel. Structural members include RHS sections sized 50x100x3 mm with bolted connections using M12 and M16 stainless steel bolts SS316, ensuring durability and corrosion resistance. Expansion anchors M12x135 are specified for secure fixing to structural surfaces. The layout provides exact dimensions such as 195 mm, 215 mm, 255 mm, and 220 mm for accurate fabrication and installation. Quantity specifications like BR3 at P23 C49 11 numbers, BR4S 11 numbers, and BR3A 22 numbers are clearly defined for project execution. This AutoCAD DWG drawing is ideal for structural engineers, fabricators, and construction professionals for precise connection detailing and site implementation.
