Bungalow Layout DWG 4240x4500 Living Room Bedroom Plan Detail

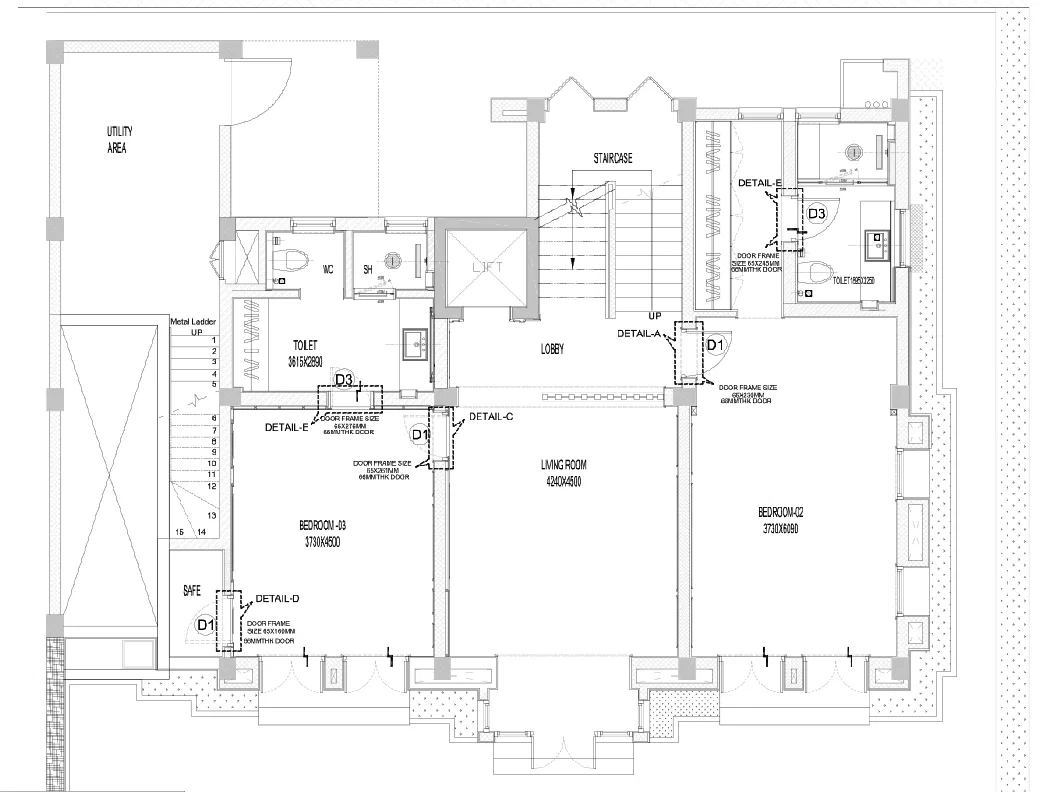

This bungalow layout DWG file presents a detailed residential floor plan with precise room dimensions and door tagging information for construction accuracy. The drawing includes a spacious living room measuring 4240x4500 mm along with bedrooms sized approximately 3730x4500 mm and 3730x6090 mm, ensuring comfortable residential planning. The layout incorporates essential spaces such as a utility area, toilet 3615x2890 mm WC, shower area, and a central lobby connected to a lift and staircase for efficient circulation. Door tagging details such as D1 and D3 with specific frame sizes, including 65x261 mm, 65x245 mm, and 65x230 mm, along with 66 mm thick doors, are clearly defined. Structural elements include 230 mm thick brick walls and detailed sections marked as detail A, C, D, and E for construction clarity. Additional features like a metal ladder, a safe area, and service zones are included for functionality. This AutoCAD DWG drawing is ideal for architects, interior designers, and builders for bungalow planning, door detailing, and execution.
