Guard House Structure Detail 300x300 Column D10 200 Slab DWG

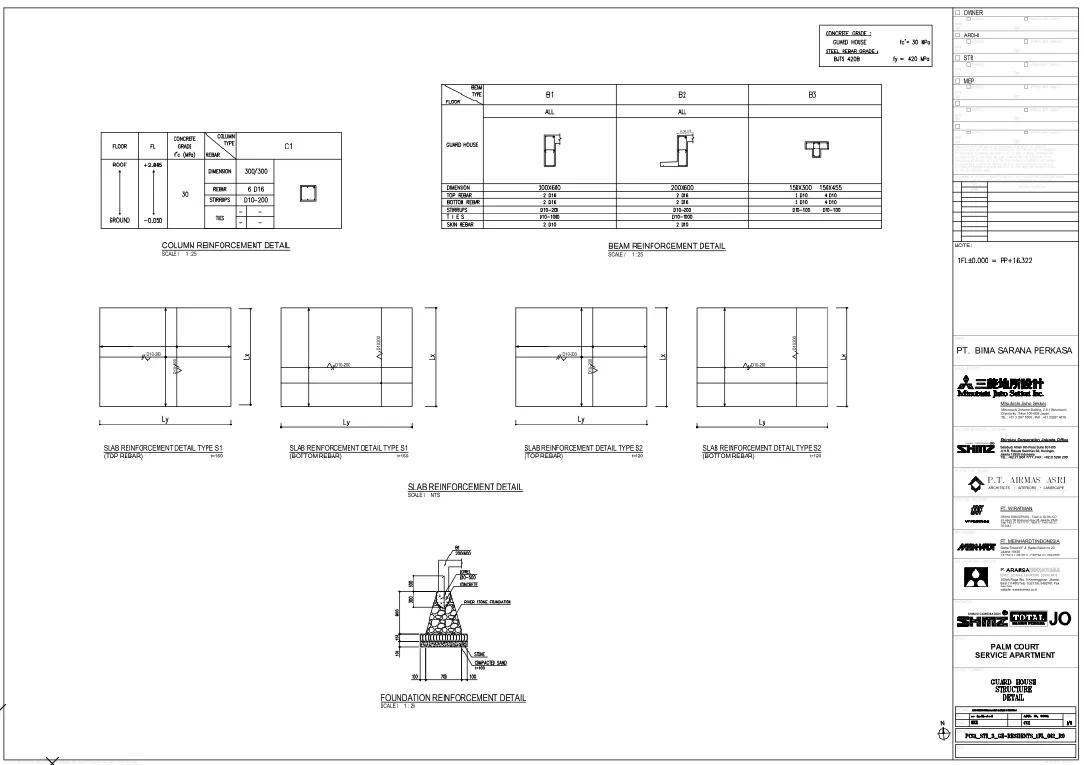

This AutoCAD DWG file provides a comprehensive guard house structure detail, including column, beam, slab, and foundation reinforcement specifications for accurate construction execution. The drawing includes column reinforcement detail with dimensions 300 mm by 300 mm using 6 bars of 16 mm diameter and stirrups of 10 mm diameter at 200 mm spacing. Beam reinforcement details are shown for multiple beam types with dimensions such as 200 mm by 600 mm and 150 mm by 300 mm, including top and bottom reinforcement bars and stirrup spacing. Slab reinforcement details include Type S1 with a thickness of 150 mm and Type S2 with a thickness of 120 mm, both showing top and bottom rebar arrangements with 10 mm diameter bars at 200 mm spacing. The foundation detail illustrates a stepped footing with PCC layer, compacted sand, and rubble stone base, along with a slope of 1:10 for proper drainage. The drawing also includes reinforcement layout diagrams, sectional details, and construction notes for coordination with structural, plumbing, and electrical drawings. This guard house structure CAD drawing is essential for architects, civil engineers, and builders requiring precise reinforcement detailing for residential and site development projects.
