Proposed Staff Quarters Building DWG 144ft by 55ft Site Plan CAD

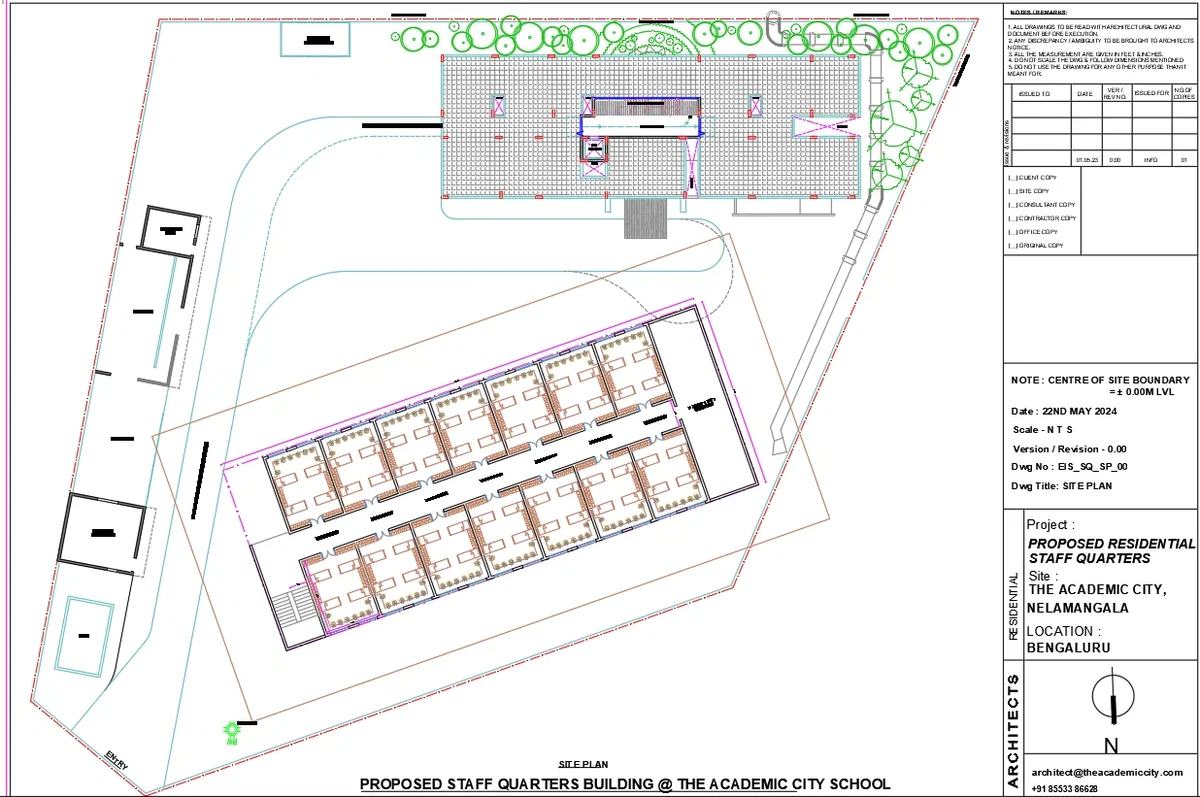

This AutoCAD DWG file presents a proposed staff quarters building DWG 144ft by 55ft site plan CAD designed for residential staff housing at The Academic City Bengaluru. The drawing includes a detailed site layout with clearly defined site boundary lines, entry access, internal road circulation, and landscaped areas. The building block is arranged with multiple residential units aligned along a central corridor, with dimensions such as 144 feet in length and 55 feet in width, and passage widths including a 5 feet 6 inch wide passage. The plan incorporates functional spaces like washrooms measuring 14 feet by 53 feet 4 inches, a lift provision of 6 feet 6 inches by 6 feet 0 inches, ducts, cut-outs, and a pergola with glass roofing. Additional site elements include sump, borewell, temporary garbage shed, caretaker room, gaushala, and open spaces. The drawing follows site plan standards with north direction, scale reference, and construction notes, making this proposed staff quarters building DWG 144ft by 55ft site plan CAD highly suitable for architects and engineers working on residential campus planning and CAD documentation.
