Villa Arsitektur Bathroom Section 2150x1200 200mm Detail DWG

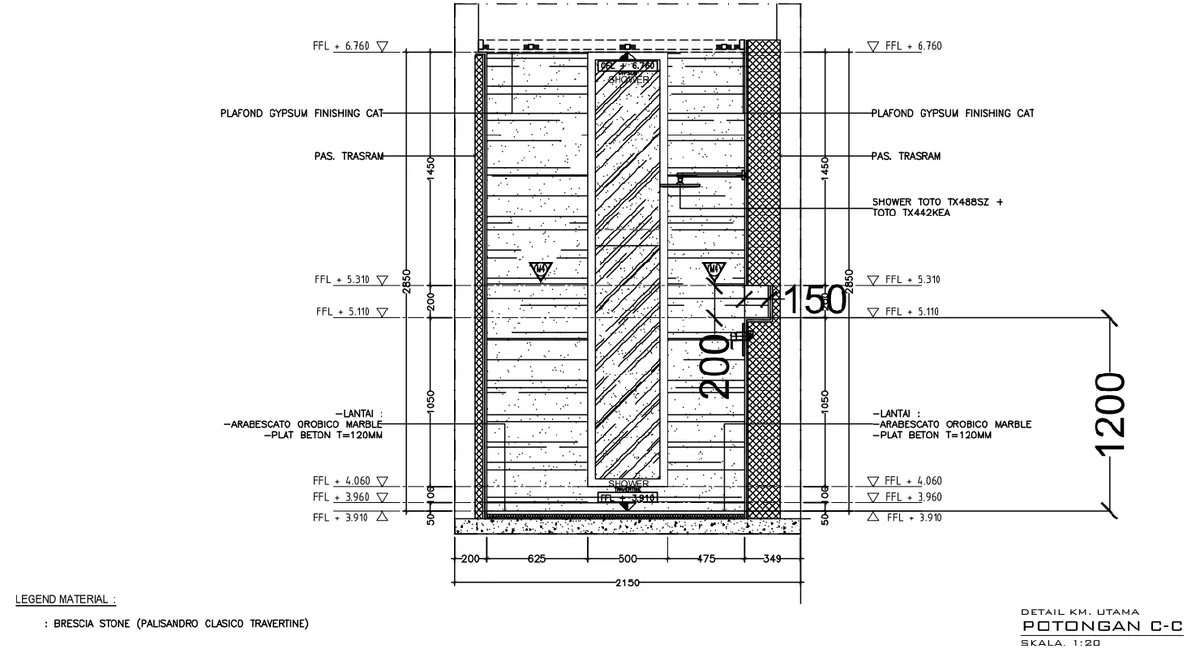

Villa Arsitektur Bathroom Section 2150x1200 200mm Detail DWG presents a detailed sectional drawing of a main bathroom layout with precise construction levels and material specifications. The drawing shows a total width of 2150 mm and depth of 1200 mm with an internal step and level difference of 200 mm and 150 mm height variations. Floor finish includes Arabescato Orobico marble over a 120 mm concrete slab, with multiple finished floor levels marked at FFL plus 3.910, 3.960, 4.060, 5.110, 5.310, and 6.760. Wall and ceiling details include gypsum ceiling finishing and plastered surfaces, while shower placement and fittings are clearly defined within the section. The drawing also highlights structural thickness, floor build-up layers, and material legend, including Brescia stone Palisandro Clasico Travertine. This AutoCAD DWG file provides accurate section C C detailing for villa bathroom design, ensuring clarity in levels, finishes, and construction detailing.
