Retaining Wall Layout at Plinth Proposed Plant Layout DWG Detail

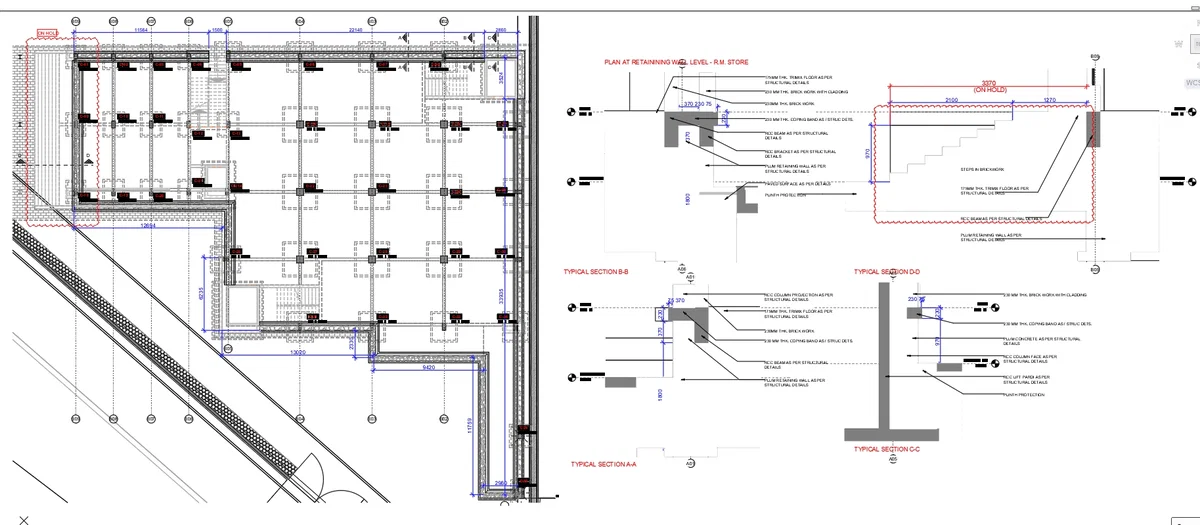

Retaining Wall Layout at Plinth Proposed Plant Layout on Land Bearing DWG Detail provides a comprehensive structural drawing for industrial plant development with detailed retaining wall planning at the plinth level. The layout includes overall dimensions such as 22140 mm length and 13020 mm width, with additional offsets like 12694 mm and 9420 mm for accurate positioning. Column grid placement includes sizes such as 300x600 mm and 600x600 mm columns with beam and footing coordination across the layout. The plinth level is defined at 1700 mm above the formation level of 500 mm ensuring clear vertical reference for construction. Detailed sections A A B B C C and D D illustrate layers including 175 mm thick trimix floor, 230 mm thick brickwork with cladding, RCC beams, coping band, and plum retaining wall construction. Additional features such as plinth protection, paved surface, and brickwork steps are included for execution clarity. This AutoCAD DWG file ensures a precise retaining wall layout at the plinth, proposed plant layout on land bearing for structural and construction use.
