Modern House Layout Plan 30480x39624mm Residence Floor DWG Plan

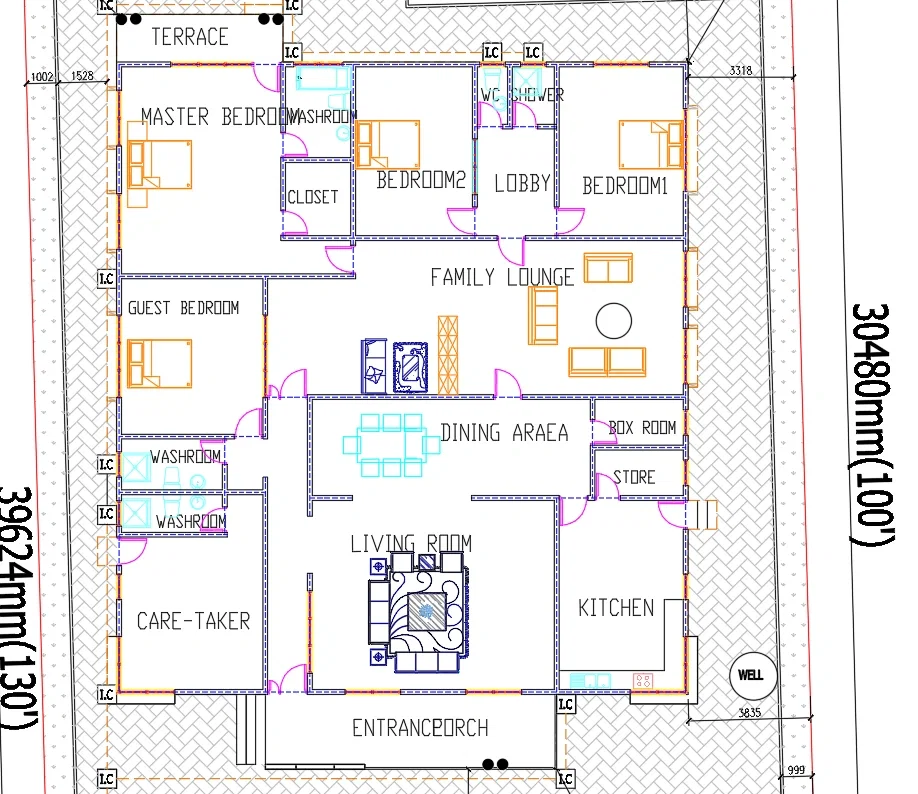

House Layout Plan 30480x39624mm Residence Floor Plan DWG presents a detailed architectural layout for a proposed residential building with complete room arrangement and site coordination. The drawing includes overall plot dimensions of 30480 mm by 39624 mm, with additional references such as 24086 mm and 25908 mm boundary measurements. The layout features a master bedroom with a terrace, multiple bedrooms, a guest bedroom, a family lounge, dining area, living room, kitchen, store, box room, and caretaker room with attached washrooms. Circulation is defined through the lobby and entrance porch, while utility elements such as the well, septic tank, and inspection chambers are clearly marked. Internal wall layout, door openings, and furniture placement are illustrated for spatial planning. The drawing also includes block plan and site plan references with proper orientation and road access. This AutoCAD DWG file ensures accurate residential house layout planning with complete architectural detailing.
