RCC Column Detail And Beam Reinforcement DWG With Dimensions

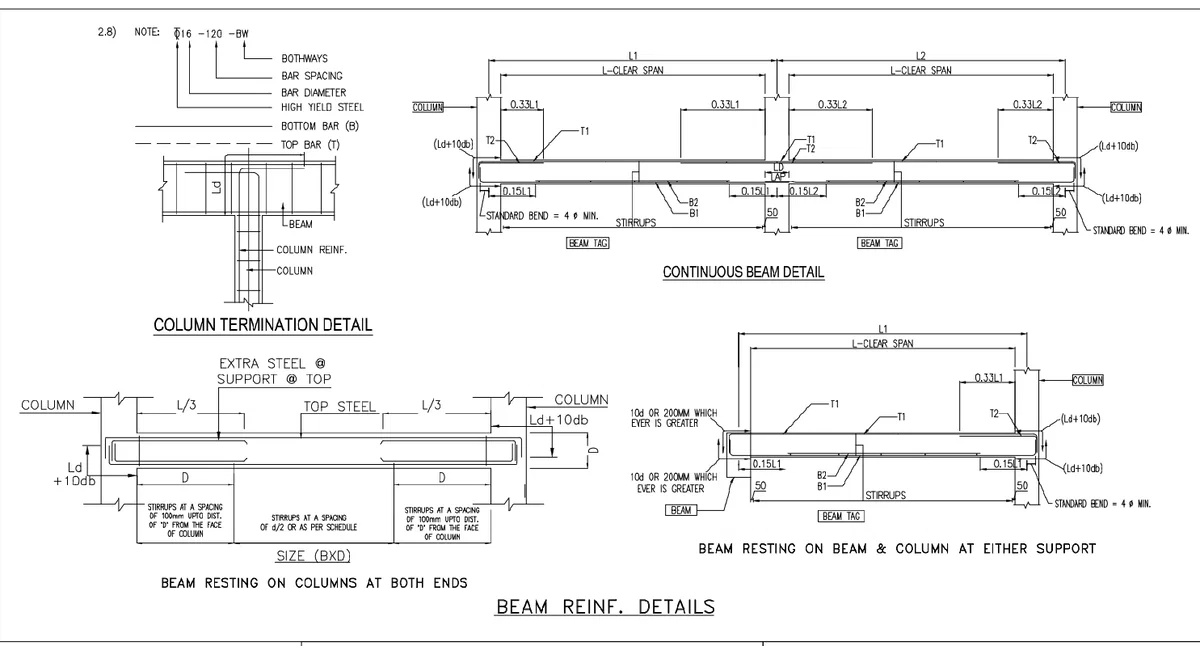

A detailed RCC column detail DWG combined with beam reinforcement layouts, presenting complete structural connections and dimensional accuracy. This column details dimensions, including column termination detail showing beam column junction, anchorage length Ld plus 10db, bar spacing, and reinforcement positioning for top and bottom steel. The drawing also features continuous beam detail with clear span L1 and L2, reinforcement zones such as 0.33L and 0.15L, stirrups spacing, and bending requirements for structural stability. Additional sections illustrate a beam resting on columns at both ends and a beam resting on a beam and a column at either support, with proper load transfer detailing. The RCC beam reinforcement detail DWG drawing includes precise annotations, steel placement, and structural standards for execution. This column and beam reinforcement detail DWG file ensures clear measurement references, detailing accuracy, and construction-ready documentation.
