First Floor Plan DWG Residential Layout With Room Dimensions Detail

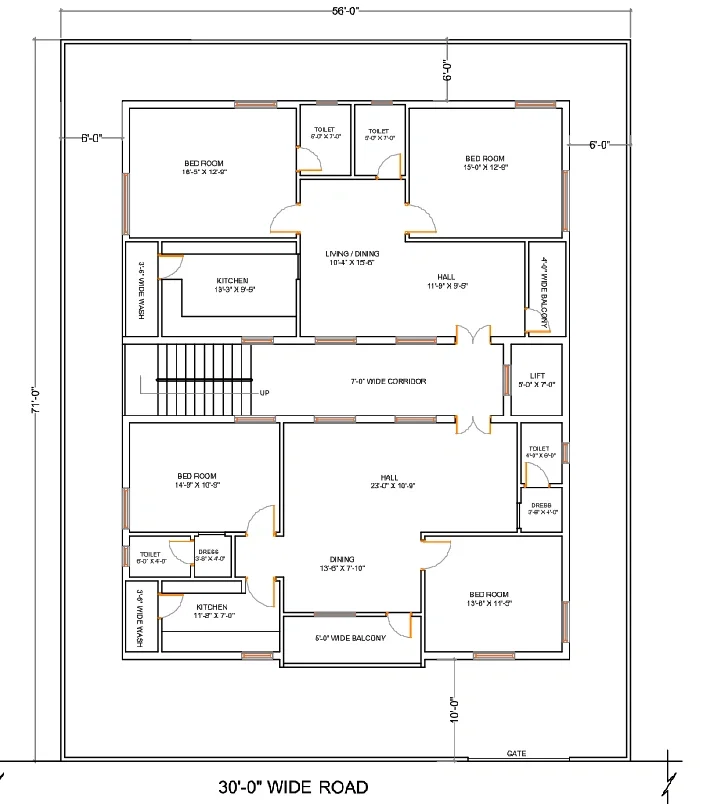

A detailed First Floor Plan DWG Residential Layout With Room Dimensions Detail presenting a complete architectural arrangement for a residential apartment layout with overall plot size around 56 feet by 71 feet and road access of 30 feet wide. The drawing includes well defined spaces such as multiple bedrooms with sizes like 16 feet 5 inch by 12 feet 9 inch and 15 feet by 12 feet 9 inch, spacious living dining area measuring approximately 10 feet 4 inch by 15 feet 6 inch, hall areas around 11 feet 9 inch by 9 feet 5 inch and 23 feet by 10 feet 9 inch, and dining space of about 13 feet 6 inch by 7 feet 10 inch. The plan also incorporates kitchen layouts sized around 13 feet 6 inches by 9 feet 5 inches and 11 feet 7 inches by 7 feet, along with toilets, dressing areas, and utility spaces. Circulation is optimized with a 7-foot-wide corridor, staircase access, and lift provision of approximately 5 feet by 7 feet. Additional features include balconies of 5 feet in width, open areas, and entry gate alignment. This First Floor Plan DWG Residential Layout With Room Dimensions Detail provides accurate measurements, spatial planning, and functional zoning suitable for architects and designers.
