Ground Floor Residential Civil Plan DWG With Room Dimensions

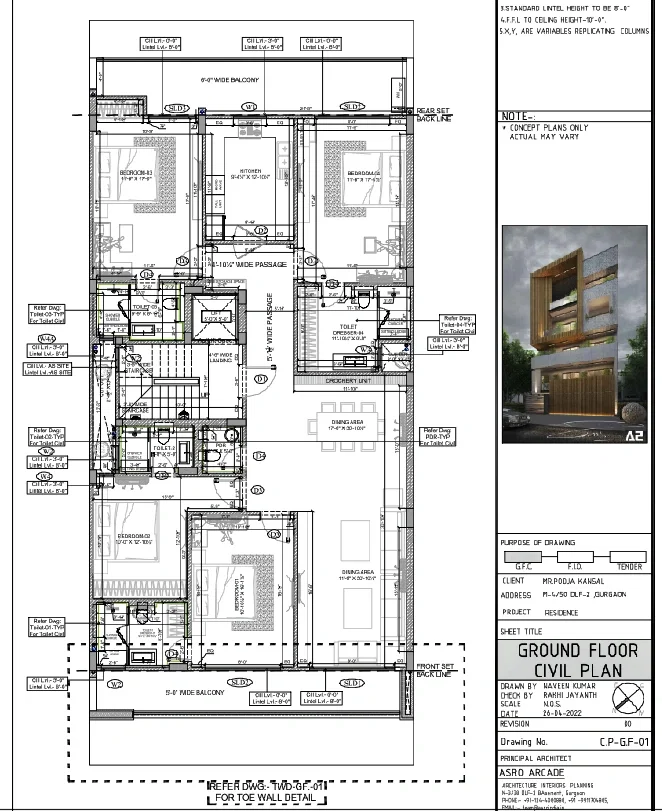

A detailed GROUND FLOOR RESIDENTIAL CIVIL PLAN DWG With Room Dimensions, presenting a complete residential layout with accurate architectural planning and measurement references. As shown in the drawing sheet, the plan includes multiple bedrooms, such as bedroom 01, sized approximately 10 feet 10 inches by 16 feet 1 inch, bedroom 02 of 10 feet by 12 feet 10 inches, bedroom 03 of 11 feet 6 inches by 17 feet, and bedroom 04 of 11 feet 6 inches by 17 feet 4 inches. The layout features a spacious dining area of about 17 feet by 30 feet 10 inches, along with an additional dining zone of 11 feet 6 inches by 30 feet 10 inches and a kitchen measuring around 9 feet 4 inches by 12 feet 10 inches. Circulation spaces include 4 feet 10 inches wide passages and 5 feet wide passages, ensuring smooth movement. The plan also incorporates a lift provision of 5 feet by 5 feet, multiple toilets with sizes such as 8 feet by 5 feet and 9 feet 9 inches by 6 feet 1 inch, shower cubicles, dressers, crockery units, and balconies of 5 feet and 6 feet in width. Structural references include a lintel level at 8 feet and a floor-to-ceiling height of 10 feet with defined front and rear setback lines. This GROUND FLOOR RESIDENTIAL CIVIL PLAN DWG With Room Dimensions provides a precise layout suitable for architects and engineers.
