Wall Reinforcement Detail DWG Plan With Rebar Sizes And Levels

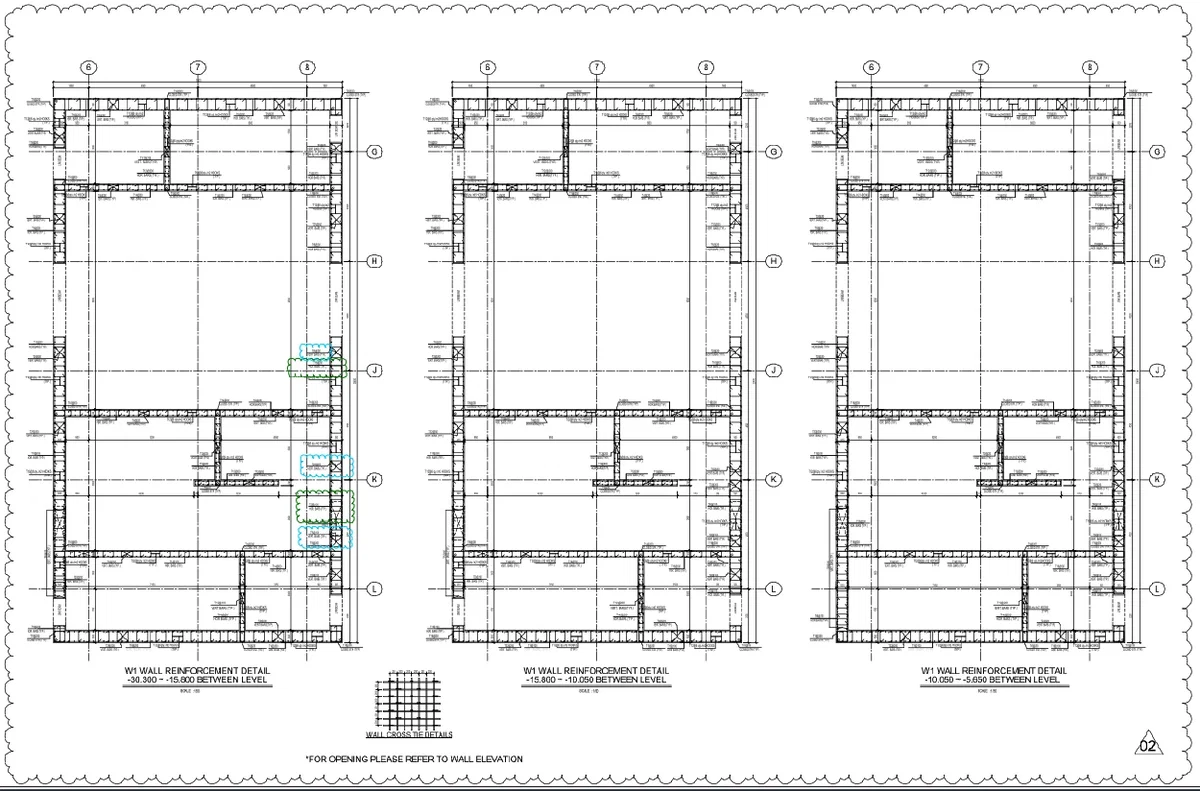

This AutoCAD DWG file presents a comprehensive Wall Reinforcement Detail with clearly defined structural layouts, rebar configurations, and level-based reinforcement specifications. The drawing includes W1 wall reinforcement details across multiple levels, such as -30.300 to -15.800, -15.800 to -10.050, and -10.050 to -5.650, ensuring accurate construction referencing. It highlights vertical reinforcement bars like T25 at 200 spacing, T32 at 200, and T14 at 200, along with horizontal bars such as T16 at 200, T20 at 100, and T14 at 200, providing complete detailing for load-bearing wall systems. The file also incorporates wall cross tie details, closed stirrups at T16 at 200, and hook reinforcements noted as T12 at 6 quantity per square meter for enhanced structural stability. Link beam connections and reinforcement continuity are clearly illustrated, making this drawing highly useful for civil engineers, architects, and construction professionals. The DWG layout follows precise measurement standards in millimeters and includes grid references, spacing dimensions, and sectional detailing for accurate on-site execution. This Wall Reinforcement Detail DWG Plan is ideal for structural analysis, reinforcement planning, and detailed construction documentation.
