Partial Framing Plan King Faisal Hospital DWG Beam Layout Plan

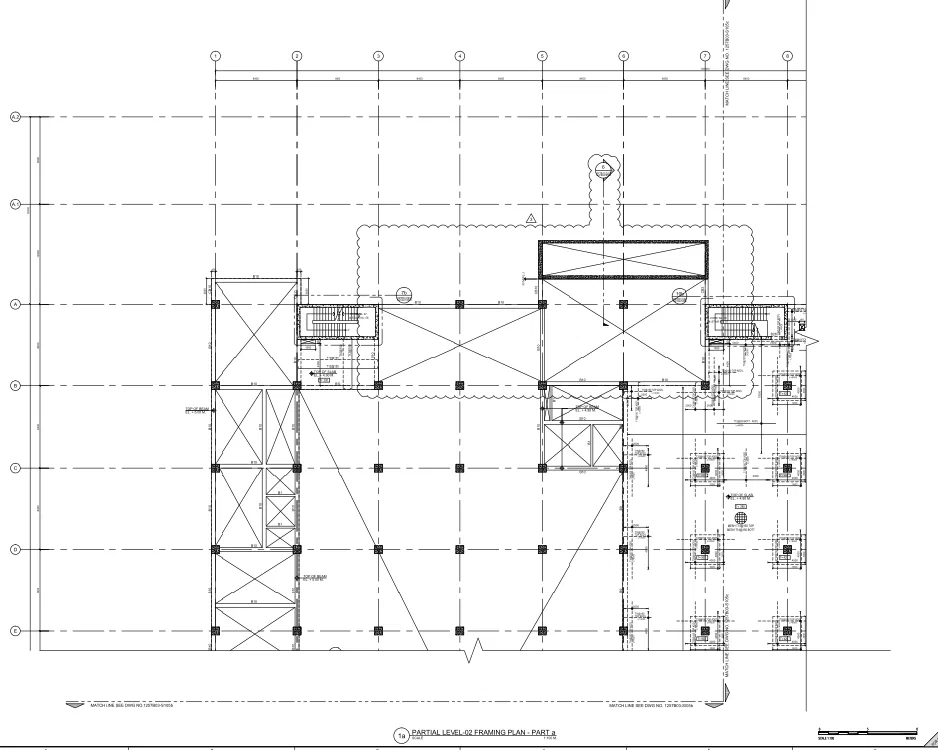

A highly detailed PARTIAL FRAMING PLAN KING FAISAL SPECIALIST HOSPITAL AND RESEARCH CENTRE DWG, presenting a complete structural beam and slab layout with accurate grid coordination and level specifications. The drawing illustrates a well-defined grid system with typical spacing of 8400 mm bays and overall dimensions extending up to approximately 19300 mm and 10300 mm. It includes beam classifications such as B10, B9, B26, CB10, and SB10 with clear positioning across the structural framework. The plan shows slab and beam elevation levels, including top of slab at plus 4.90 m and top of beam at plus 5.00 m, ensuring proper structural alignment. Core areas such as stair cores 06, 07, and 10 are integrated within the framing system along with slab openings and service coordination zones. Additional details include a 50 mm expansion joint and scale 1 is to 100, with all measurements in millimeters. Structural notes specify concrete strength of 400 kg per sq cm and reinforcement steel grade of 4200 kg per sq cm for durability and performance. This PARTIAL FRAMING PLAN KING FAISAL SPECIALIST HOSPITAL AND RESEARCH CENTRE DWG provides complete structural framing data suitable for large-scale hospital construction and execution.
