Society Plotting And Design DWG Layout With Road Sizes Details

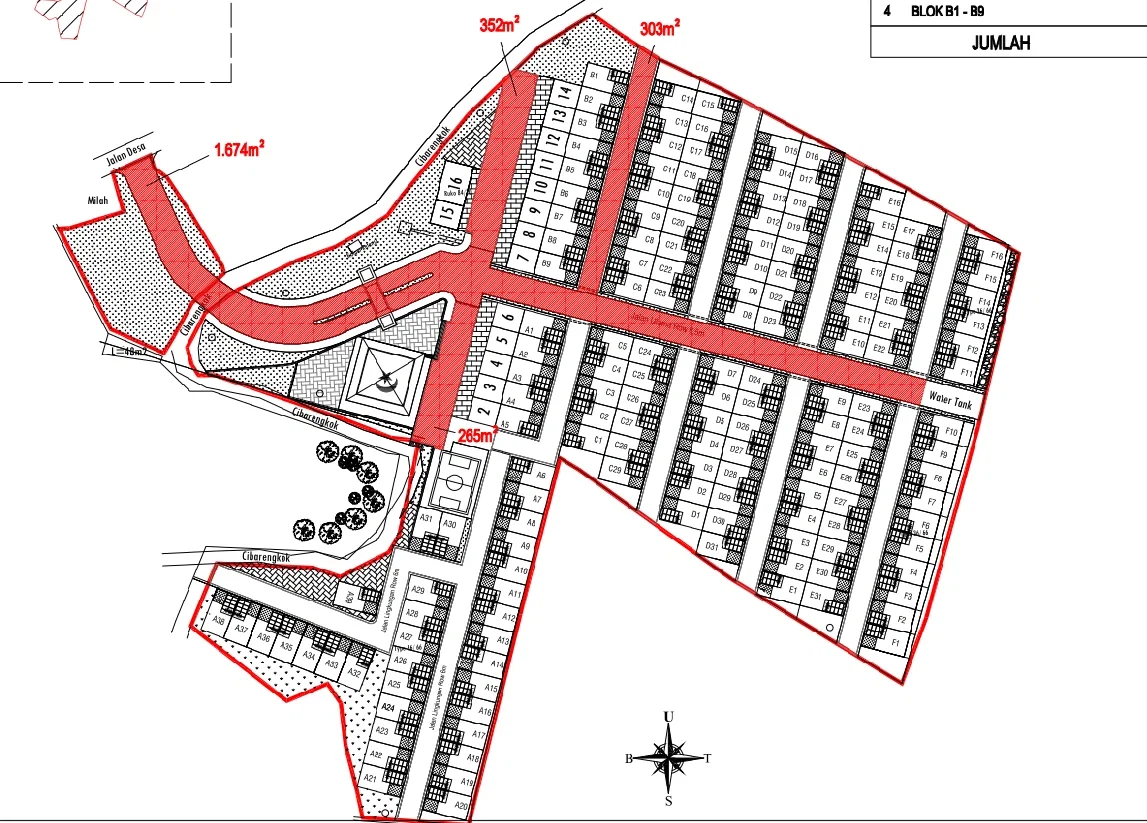

 A comprehensive Society Plotting And Design DWG Layout With Road Sizes Details showing a well-planned residential layout with clearly defined plot divisions, internal road networks, and infrastructure zoning. The drawing highlights a main access road with an area of approximately 1,674 sqm, connected to internal roads measuring around 265 sqm, 352 sqm, and 303 sqm as detailed in the road area table. The layout includes multiple residential plot blocks labeled A, B, C, D, E, and F with organized numbering and standard plot types such as Type 36 by 66 units and Ruko 84 by 70 units. Road widths are specified, including a main road row of 6.5 m and internal roads of 6 m width, ensuring proper circulation and accessibility. Key site elements such as water tank placement, retention pond, landscaped zones, and green buffers are also integrated within the plan. The design reflects a structured urban development layout with clear zoning, road hierarchy, and utility planning suitable for large-scale residential projects. This Society Plotting and Design DWG Layout With Road Sizes Details provides accurate dimensions, area distribution, and planning insights for architects and engineers.
