Industrial Sanitary Plumbing Layout DWG With Pipe Sizes Details

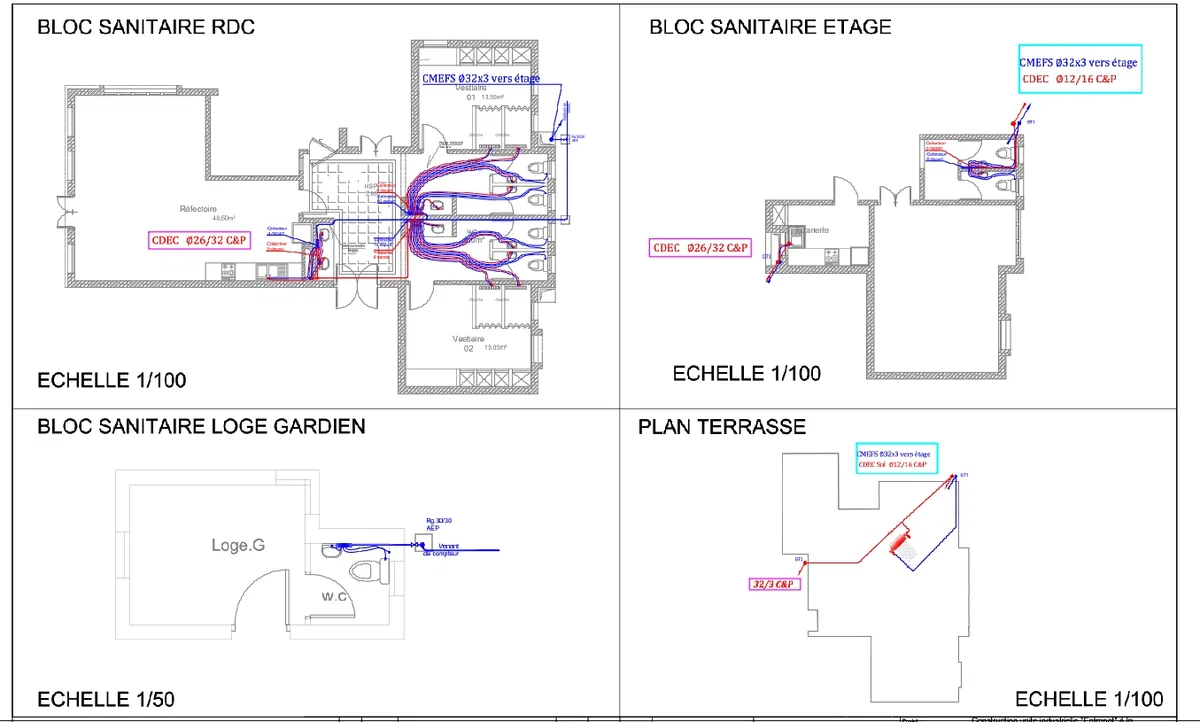

A detailed Industrial Sanitary Plumbing Layout DWG With Pipe Sizes Details specifically developed for the Construction of the Entropot industrial unit in the Nafta industrial zone, Tozeur, presenting a complete sanitary and water supply system layout. The drawing covers bloc sanitaire RDC, bloc sanitaire etage, guard lodge sanitary block, and terrace plumbing plan with precise pipe routing and fixture connections. It includes multicouche piping systems with diameters Ø12, Ø16, Ø26, and Ø32 mm, along with distribution collectors of 10 depart, 6 depart, 4 depart, and 3 depart for efficient water supply to toilets, wash basins, and service areas. Vertical risers such as CMEFS Ø32x3 are clearly defined for multi-level connections, while CDEC Ø26 and Ø12 pipelines ensure proper distribution across all sanitary spaces. The layout also specifies room dimensions, including refectoire area of 40.50 sqm, vestiaire spaces of 13.50 sqm and 15.05 sqm, and sanitary units of 6.6 sqm with drawing scales of 1 to 100 and 1 to 50 for accuracy. The terrace plan highlights pipe continuation and connection points for a complete system overview. This Industrial Sanitary Plumbing Layout DWG With Pipe Sizes Details ensures clarity for execution, coordination, and planning of industrial plumbing systems.
