Bathroom Toilet Elevation and Section DWG Plan 3x1 Point 6 Meter

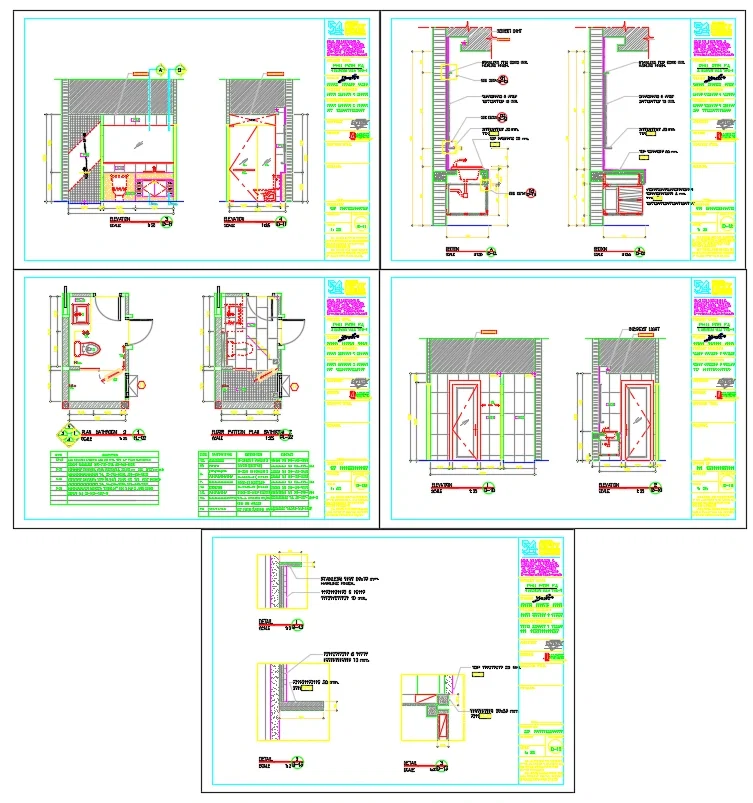

This Bathroom Toilet Elevation and Section DWG Plan 3x1 Point 6 Meter AutoCAD drawing includes detailed layout, elevation, section, and construction details for a compact bathroom design. The plan shows an overall space of approximately 3.00 meters in width and 1.60 meters in depth, with clear fixture placement such as WC, wash basin, shower area, and floor drain positions. Elevation drawings highlight door placement, tiled wall finishes, and indirect lighting details at a height of about 2.50 meters. Section drawings provide precise construction information, including wall thickness, floor levels, sanitary fixture installation heights, and drainage slopes. The file also contains detailed callouts for materials like stainless steel fittings 50x10 mm, tile thickness 10 mm to 20 mm, and countertop specifications. This Bathroom Toilet Elevation and Section DWG Plan 3x1 Point 6 Meter is useful for architects and interior designers to understand spatial arrangement, detailing, and execution of modern toilet layouts with accurate measurements and technical clarity.
