Corporate Building Electrical Layout DWG 89550mm Floor Plans

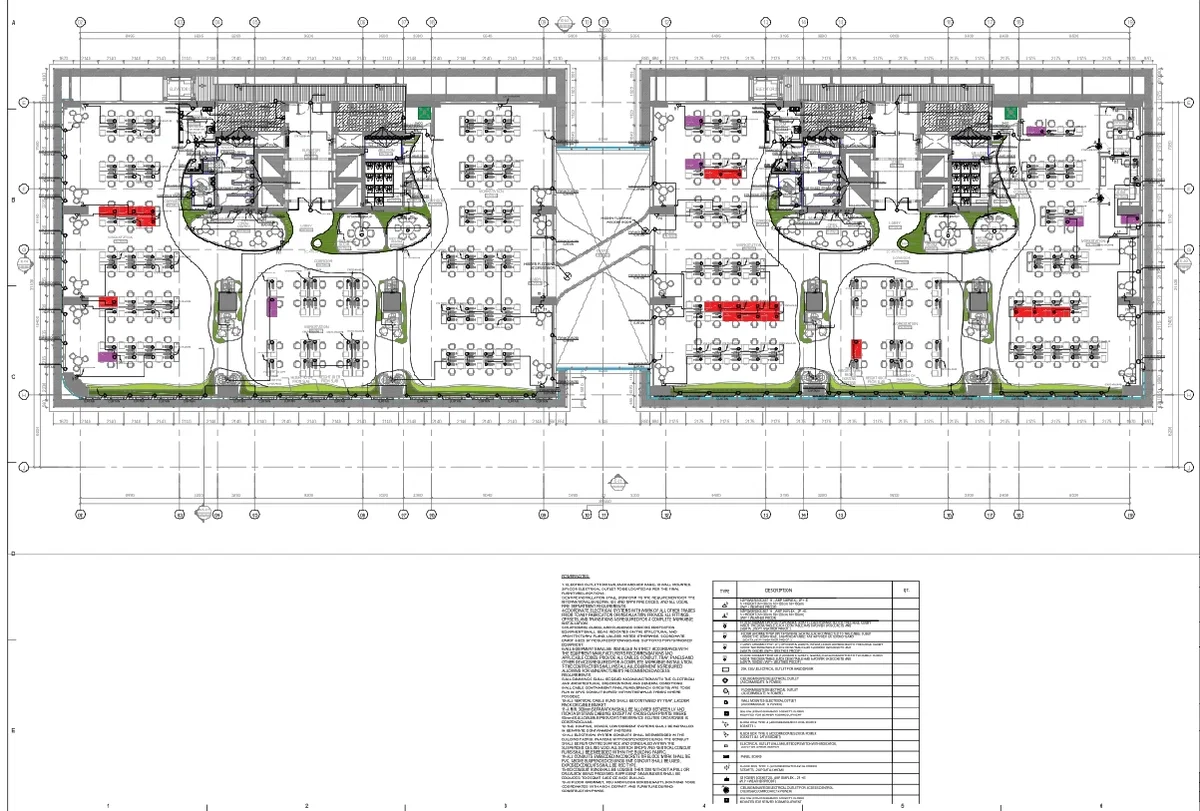

This AutoCAD DWG file showcases a detailed corporate building electrical layout DWG for the 4th floor power system layout with an overall building width of 89550mm and structured grid spacing including 8495mm, 3205mm, 3200mm, 9200mm, 3500mm, 2380mm, and 9540mm. The drawing includes complete electrical planning with workstation layouts, meeting rooms, corridors, lobbies, pantry areas, toilets, prayer rooms, and server and telecom rooms. It highlights the precise placement of electrical components such as PDU1, PDU2, PDU3, PDU4 floor grommets, wall-mounted and floor-mounted electrical outlets, 13 amp and 20 amp sockets, commando sockets, access control outlets, ceiling-mounted points, and dedicated circuits for equipment like hand dryers, water heaters, coffee machines, and data racks. The layout also includes cable management systems such as metal catwalks, tray routing, conduit systems embedded in walls, and suspended ceilings, along with a minimum 300mm separation for LV and data cabling. Additional elements like 55-inch signage display points, HVAC coordination, fire system integration, and electrical panel board connections are clearly marked. This corporate building electrical layout DWG provides accurate dimensions, legend details, and installation notes, ensuring effective planning and execution of electrical systems.
