AutoCAD DWG Ceiling Support And Roof Support Fabrication Drawing Set
Frequently Asked Questions
The drawing package includes ceiling supports, roof supports, ceiling finishing profiles, roof edge components, and support brackets with complete fabrication dimensions.
E-E-A-T & Quality Verification
📝 AI Overview (TL;DR)
This AutoCAD DWG drawing package includes fabrication drawings for ceiling supports, roof supports, ceiling finishing profiles, and roof edge components. The set features 1500 mm, 3000 mm, and 2620 mm profiles with Ø11 mm holes, multiple sheet thicknesses, bend radii, sectional views, profile details, and manufacturing dimensions for fabrication and installation.
💡 First-hand Experience
This drawing package has been reviewed for fabrication accuracy, dimensional consistency, and manufacturing readiness. The drawings clearly define support profile geometry, mounting hole locations, bend radii, flange dimensions, sheet thicknesses, and sectional details. The combination of elevation, profile, section, and isometric views supports efficient fabrication, installation, quality control, and engineering documentation.
Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description

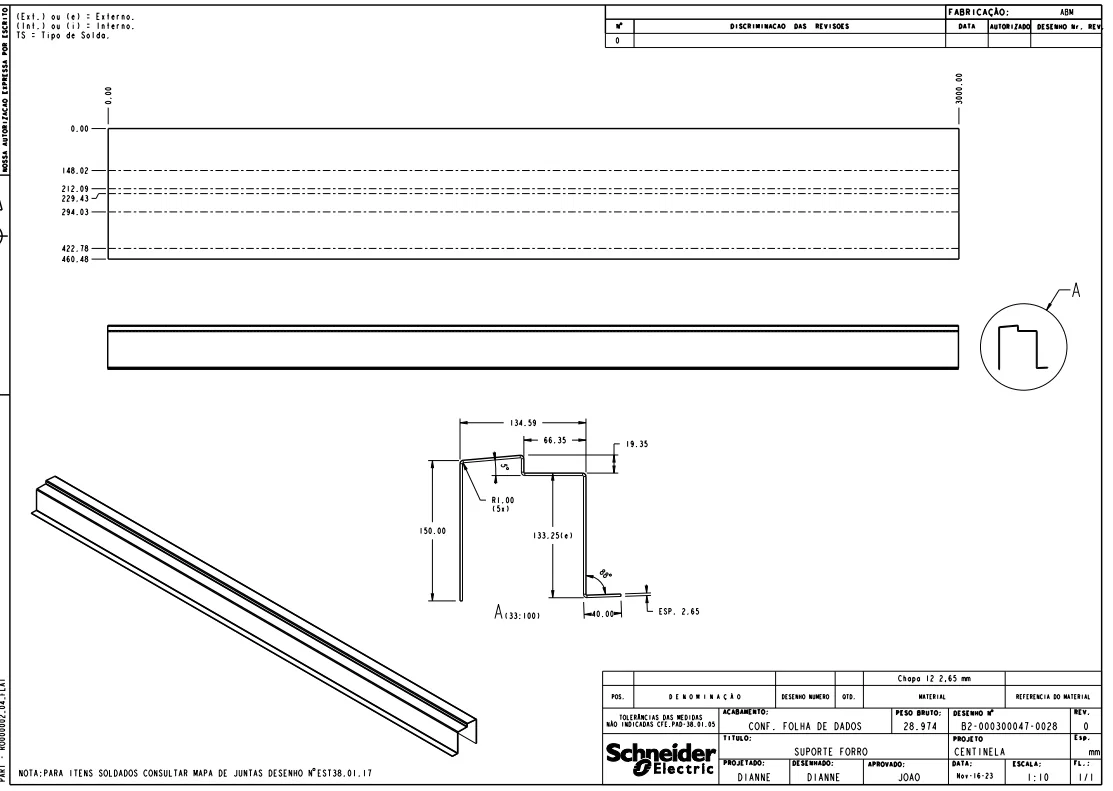

This AutoCAD DWG drawing package contains detailed fabrication drawings for ceiling supports, roof supports, ceiling finishing profiles, and initial roof edge components used in industrial and commercial construction. The drawing set includes 1500 mm, 3000 mm, and 2620 mm support profiles with 6.35 mm, 1.55 mm, 1.90 mm, and 2.65 mm sheet thicknesses. Fabrication details include Ø11 mm mounting holes, 120 mm support width, 150 mm profile height, 358 mm vertical section, 73.81 mm top width, 134.59 mm profile width, 66.35 mm return flange, 40 mm flange, 35.36 mm bends, R1.00, R1.55, and R6.35 bend radii, 85°, 90°, 45°, and 5° bend angles, plus complete sectional, elevation, profile, and isometric views. These AutoCAD DWG fabrication drawings provide accurate dimensions for manufacturing, installation, fabrication planning, quality inspection, and engineering documentation for ceiling and roof support systems.
