3570mm and 809mm Wall Plate Fabrication Drawing Layout Details
Frequently Asked Questions
This collection includes 3570 mm, 3518 mm, 809 mm, and 735 mm internal and external wall plate fabrication drawings with profile details.
E-E-A-T & Quality Verification
📝 AI Overview (TL;DR)
This AutoCAD drawing collection includes 3570 mm, 3518 mm, 809 mm, and 735 mm wall plate fabrication details with profile sections, bend dimensions, sheet metal layouts, and manufacturing specifications.
💡 First-hand Experience
Reviewed the drawings for profile accuracy, fabrication dimensions, bend details, flange geometry, and sectional layouts. The files provide clear manufacturing references for sheet metal wall plate production.
Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description

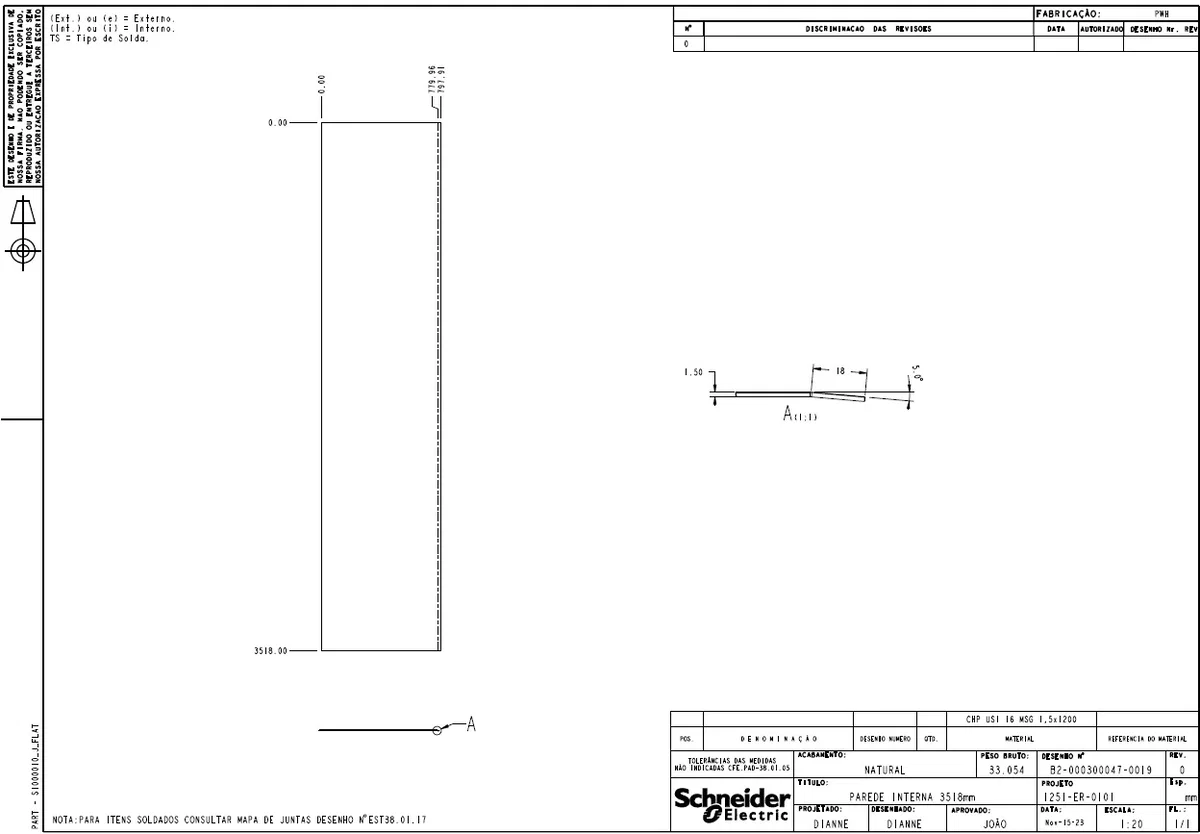

The 3570mm and 809mm Wall Plate Fabrication Drawing Collection in AutoCAD DWG format. This drawing package includes internal and external wall plate details measuring 3570 mm, 3518 mm, 809 mm, and 735 mm with standard and recessed profiles. The drawings feature detailed sectional views, profile geometry, bend angles, flange dimensions, material thickness, manufacturing measurements, and fabrication layouts. Each sheet provides accurate production information for formed sheet metal components, including profile sections, installation references, and fabrication specifications. These CAD drawings are suitable for mechanical engineers, fabricators, architects, contractors, and construction professionals requiring reliable manufacturing documentation and precise sheet metal fabrication details.
