3570mm Corner Plate and 1500mm Ceiling Support Fabrication Drawing
Frequently Asked Questions
The collection includes 3570 mm corner plates, 3518 mm and 3428 mm internal wall plates, and a 1500 mm ceiling support drawing.
E-E-A-T & Quality Verification
📝 AI Overview (TL;DR)
This AutoCAD drawing set includes 3570 mm corner plates, 3518 mm and 3428 mm wall plates, and a 1500 mm ceiling support with fabrication details, profile sections, and manufacturing dimensions.
💡 First-hand Experience
Reviewed the drawings for dimensional accuracy, profile geometry, bend details, flange sizes, and fabrication layouts. The files provide clear manufacturing references for sheet metal component production.
Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description

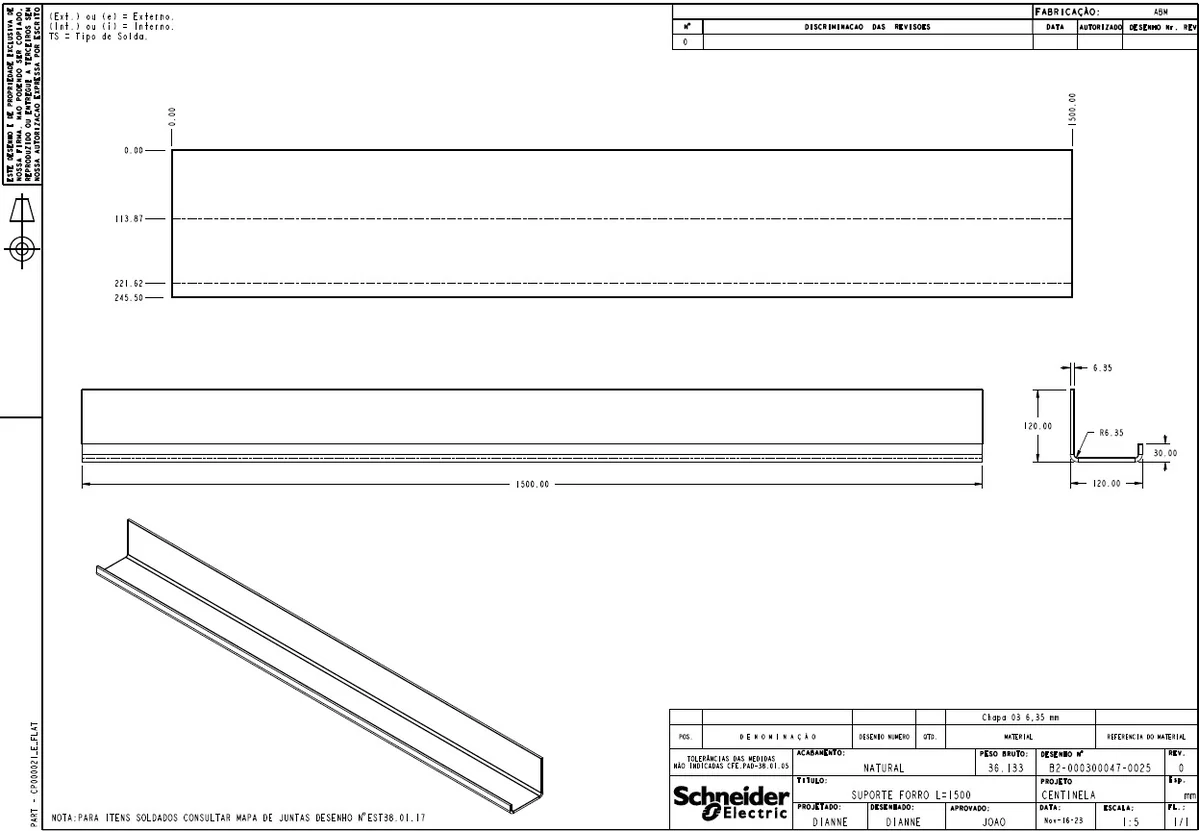

The 3570mm Corner Plate and 1500mm Ceiling Support Fabrication Drawing in AutoCAD DWG format. This drawing collection includes 3570 mm internal and external corner plate details, 3518 mm internal wall plates, a 3428 mm internal wall plate, and a 1500 mm ceiling support profile. The drawings feature sectional views, profile geometry, bend radii, flange dimensions, sheet metal thickness, fabrication layouts, and manufacturing specifications. Detailed dimensions, profile sections, and installation references are provided to support accurate sheet metal fabrication and assembly. These CAD drawings are suitable for mechanical engineers, fabricators, architects, contractors, and construction professionals requiring reliable production and fabrication documentation.
File Type:
DWG
File Size:
586 KB
Category::
Mechanical and Machinery
Sub Category::
Mechanical Engineering
type:
Gold
Tags
Uploaded by:
Umar
Mehmood
