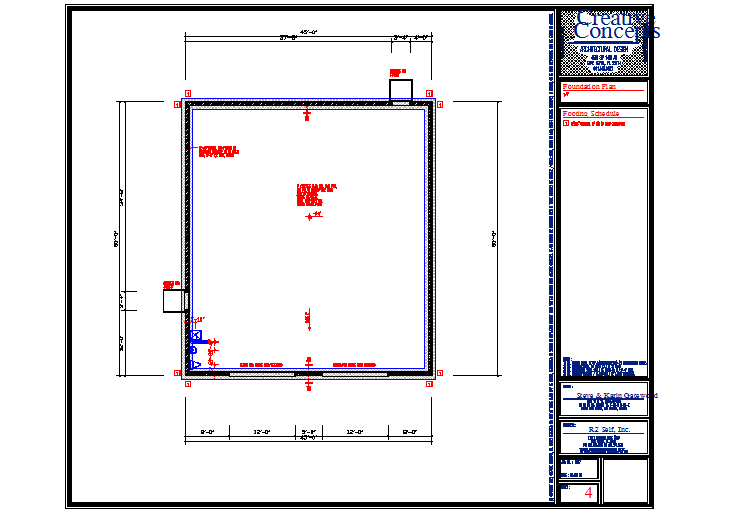

Foundation plan of a residential house

Description:

Foundation plan of a residential house. vertical rod footing to tie beam in concrete filled block core, 8'-0" c/c max., typical recess for garage door water stop 4" concrete slab, min. 3000 p.s.i., 6x6 #10/10 welded wire mesh,.006 mil visqueen,termite treatment,clean, compacted fill,smooth trowel finish.

Category : Structure detail
Sub category : Footing Detail
File Type : Autocad
File ID : 28608
Type : Gold
Size : 140.01 KB
