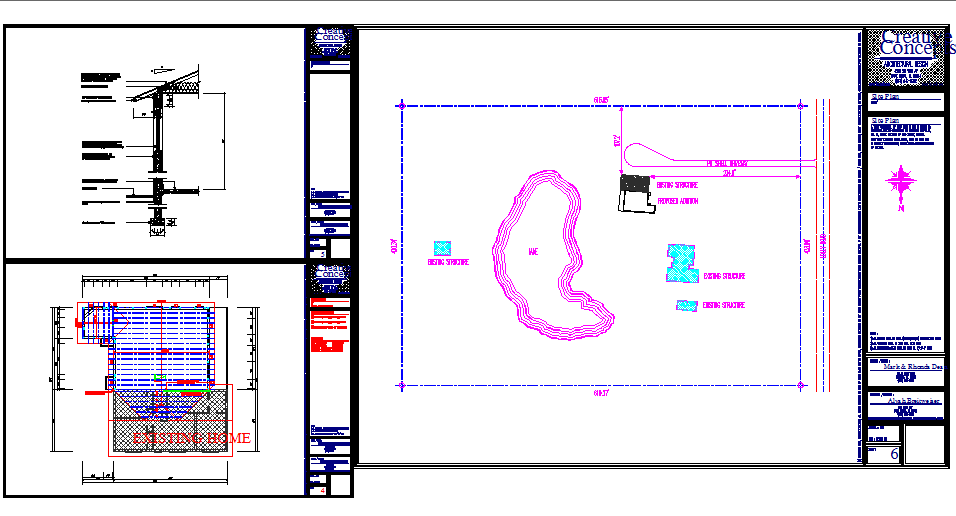

Site Plan with section detail

Description:

site plan with section detail, existing structure, proposed addition, pit shell driveway, approximate finished grade, 8"x8"x16" concrete block stem wall, coursing as required by site, conditions, 16"w x 8"h concrete footing w/ (2) #5 rods continuous.

Category : Structure detail
Sub category : Section plan
File Type : Autocad
File ID : 29299
Type : Gold
Size : 649.42 KB
Publisher
Zalak Prajapati
India
