Interior house design 2D cad drawing with wall elevation details

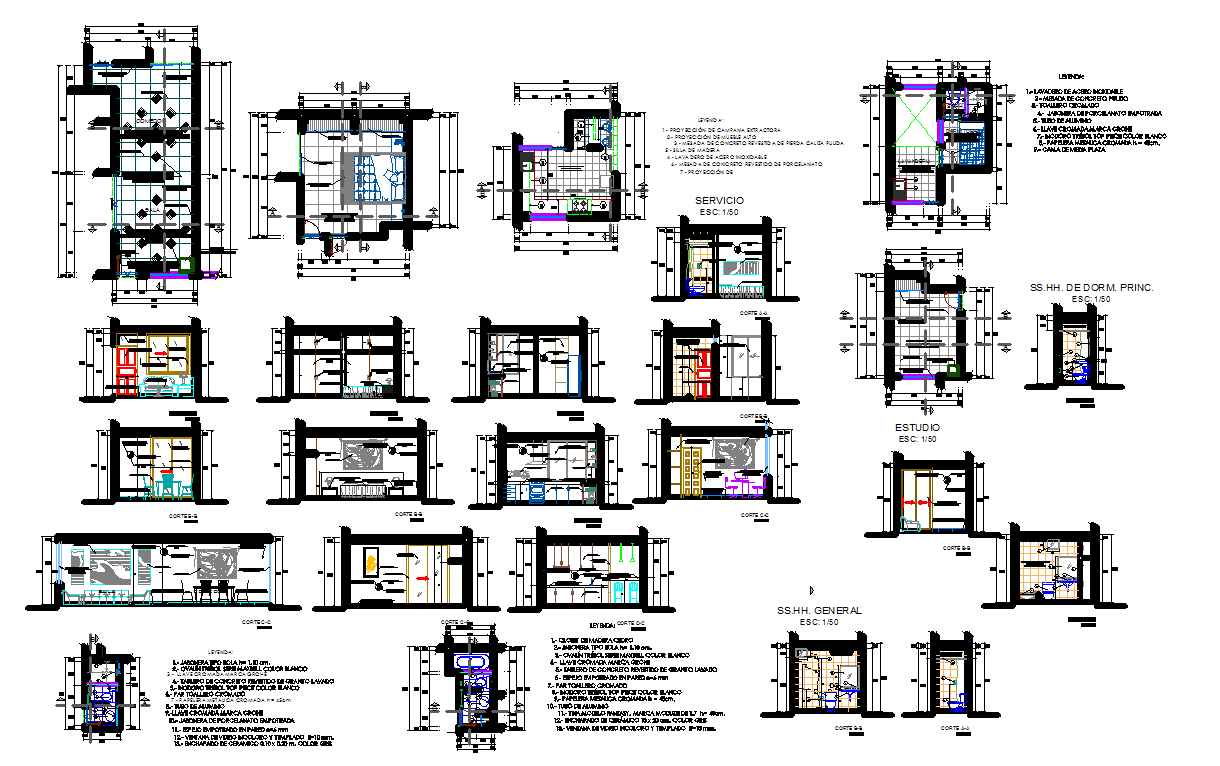

This interior design house CAD drawing presents a complete 2D layout with detailed wall elevations and section views. The file highlights the interior structure of each room, including the living room, kitchen, dining area, bedroom, and bathrooms. It provides a comprehensive visual representation of interior arrangements, showcasing detailed furniture placement, wall partitions, and ceiling heights. The DWG file is designed for professional use by architects, civil engineers, and interior designers who require precision in residential planning and design documentation.

Each drawing in this CAD file includes cross-sectional views, dimension lines, and furniture layouts that ensure clarity and practical usability. The design also incorporates color-coded annotations for materials, finishes, and fixtures to make the interior detailing easier to interpret. This 2D interior house plan can be utilized for client presentations, renovation planning, and interior visualization projects. Whether you are designing a new home or remodeling an existing space, this interior design CAD drawing offers the perfect balance of creativity and technical accuracy for your next residential project.
