Roof Plan & Section Detail
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

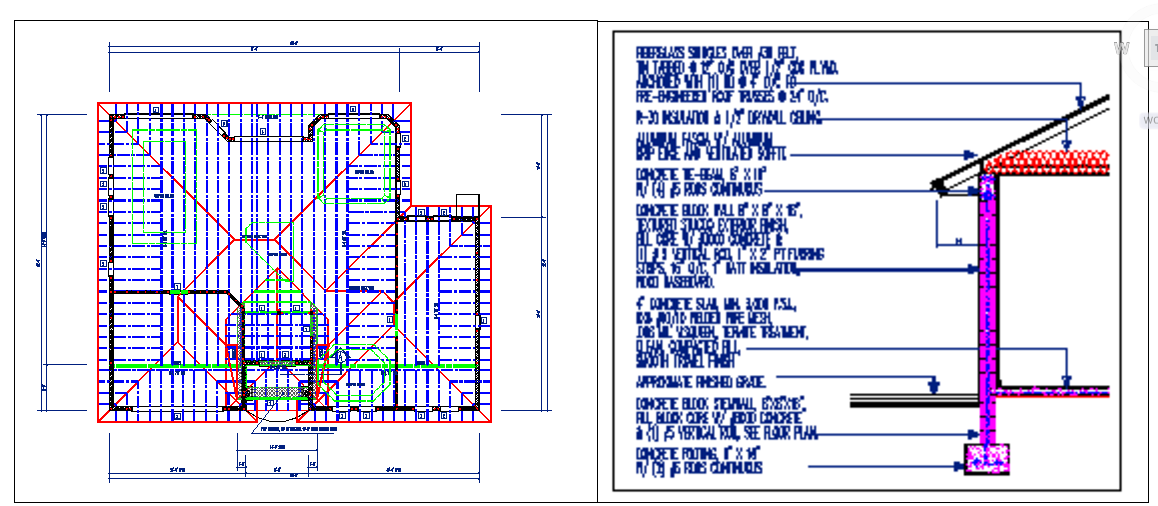

Roof Plan & Section Detail . concrete tie-beam, 8" x 16" w/ (4) #5 rods continuous, r-30 insulation & 1/2" drywall ceiling.approximate finished grade.fiberglass shingles over #30 felt, tin tabbed @ 12" o/c over 1/2" cdx plywd.anchored with (1) 8d @ 4" o/c to pre-engineered roof trusses @ 24" o/c..
File Type:
DWG
File Size:
1.2 MB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
Tags
#Roof Plan & Section Detail
