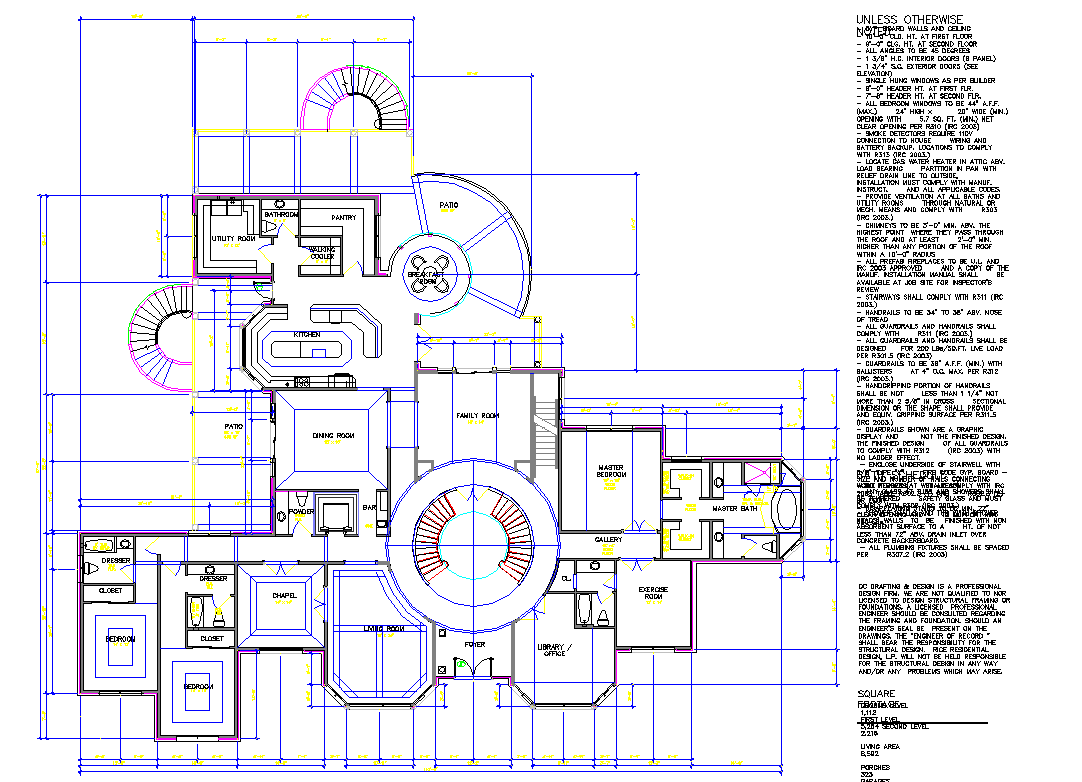

Resort Layout plan dwg file


Description

FOLLOWING THE DETAIL OF RESORT PROKECT> ALL BEDROOM WINDOWS TO BE 44" A.F.F. (MAX.) 24" HIGH x 20" WIDE (MIN.) OPENING WITH 5.7 SQ. FT. (MIN.) NET CLEAR OPENING PER R310 (IRC 2003) - SMOKE DETECTORS REQUIRE 110V CONNECTION TO HOUSE WIRING AND BATTERY BACKUP. LOCATIONS TO COMPLY WITH R313 (IRC 2003.) - LOCATE GAS WATER HEATER IN ATTIC ABV. LOAD BEARING PARTITION IN PAN WITH RELIEF DRAIN LINE TO OUTSIDE, INSTALLATION MUST COMPLY WITH MANUF. INSTRUCT. AND ALL APPLICABLE CODES. - PROVIDE VENTILATION AT ALL BATHS AND UTILITY ROOMS THROUGH NATURAL OR MECH. MEANS AND COMPLY WITH R303 (IRC 2003.) - CHIMNEYS TO BE 3'-0" MIN. ABV. THE HIGHEST POINT WHERE THEY PASS THROUGH THE ROOF AND AT LEAST 2'-0" MIN. HIGHER THAN ANY PORTION OF THE ROOF WITHIN A 10'-0" RADIUS - ALL PREFAB FIREPLACES TO BE U.L. AND IRC 2003 APPROVED AND A COPY OF THE MANUF. INSTALLATION MANUAL SHALL BE AVAILABLE AT JOB SITE FOR INSPECTOR'S REVIEW - STAIRWAYS SHALL COMPLY WITH R311 (IRC 2003.) - HANDRAILS TO BE 34" TO 38" ABV. NOSE OF TREAD - ALL GUARDRAILS AND HANDRAILS SHALL COMPLY WITH R311 (IRC 2003.) - ALL GUARDRAILS AND HANDRAILS SHALL BE DESIGNED FOR 200 LBs/SQ.FT. LIVE LOAD PER R301.5 (IRC 2003) - GUARDRAILS TO BE 36" A.F.F. (MIN.) WITH BALUSTERS AT 4" O.C. MAX. PER R312 (IRC 2003.) - HANDGRIPPING PORTION OF HANDRAILS SHALL BE NOT LESS THAN 1 1/4" NOT MORE THAN 2 5/8" IN CROSS SECTIONAL DIMENSION OR THE SHAPE SHALL PROVIDE AND EQUIV. GRIPPING SURFACE PER R311.5 (IRC 2003.) - GUARDRAILS SHOWN ARE A GRAPHIC DISPLAY AND NOT THE FINISHED DESIGN. THE FINISHED DESIGN OF ALL GUARDRAILS TO COMPLY WITH R312 (IRC 2003) WITH NO LADDER EFFECT. - ENCLOSE UNDERSIDE OF STAIRWELL WITH 5/8" TYPE "X" FIRE CODE GYP. BOARD - SIZE AND NUMBER OF NAILS CONNECTING WOOD MEMBERS SHALL COMPLY WITH IRC 2003 TABLE R602.3 (1) AND R602.3 (2) OR EQUIV. - DISAPPEARING STAIRS TO BE MIN. 22" CLEAR OPENING AND TO SUPPORT MIN. 350 LBs.



Komal
India
File Type: DWG ID: 30420
