AutoCAD Multicourt Fence DWG with 2D Sectional and Structural Details

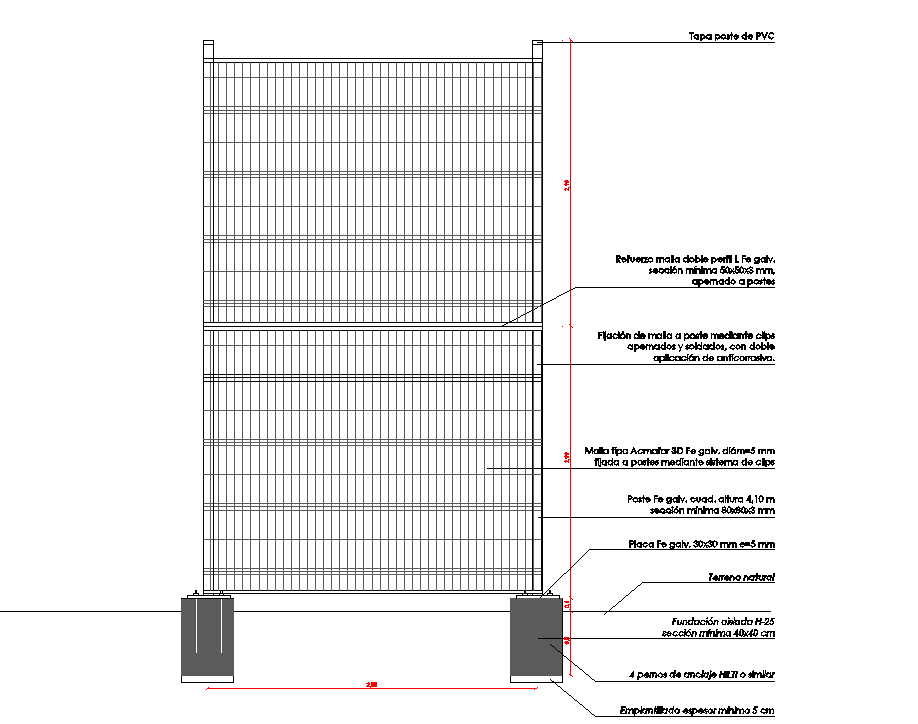

This Closing Multicourt AutoCAD DWG drawing presents a detailed 2D sectional layout ideal for sports court fencing and structural boundary planning. The drawing includes comprehensive dimensions, reinforcement details, mesh fixing methods, and foundation specifications for durable and safe court enclosures. It features the arrangement of galvanized steel posts, anchor reinforcements, PVC caps, and fixed 3D wire mesh panels with accurate height and spacing details. Each structural component, including base plates and concrete footings, is dimensioned to ensure ease of fabrication and installation.

This AutoCAD DWG file is highly beneficial for architects, structural engineers, and contractors engaged in sports facility design, outdoor enclosures, and fencing installation projects. It supports quick customization, accurate modeling, and efficient planning for multicourt perimeters and boundary systems. The 2D sectional views enhance construction clarity, reduce design errors, and improve on-site execution accuracy. The file can be edited and scaled easily in AutoCAD or compatible design software, making it suitable for professional documentation and tender preparation. Download this Multicourt Fence DWG drawing to streamline your sports court construction process and ensure structurally sound, professionally designed enclosures.
