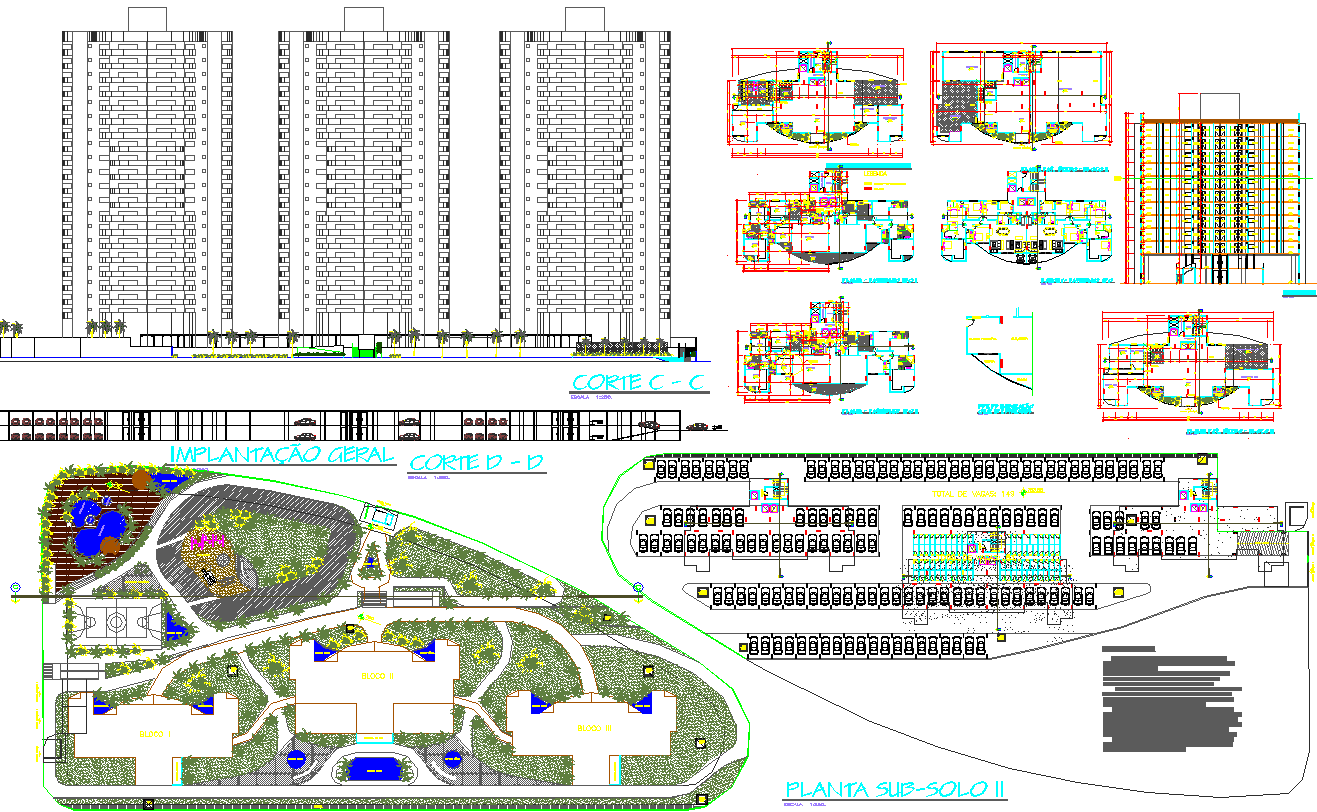

Luxurious Apartment Project dwg file

Description:

Habitação coletiva, formed by a set of three building towers, each one of 40 type apartments, 20 pavements, 2 sub-solos, terre and mezanino. Each apartment possui 180m2 and all possuem uniform plant, modifying just to square metragem das out of 10 apartments, pulling assim party in arquitetônica form.  Or set housing, will be located in a gleba not around Parque Flamboyant, teido assim a privileged view. Levando em consideração tal fato, as facades principais two three buildings will be turned for or park, assim as all as removed. O terra and irregular e possui um cavity of 5 meters. The towers will be implanted in a high altitude zone that passes hair terrain (level 790.00), so that as isso seja possível obter natural illumination does not sub-only I (level 786.94). O deck with the pools will be at 787.00 e a quadra poli - esportiva, together with playground, ginástica bars and tracks of Cooper and cycling will be located at 788.00. Or housing set teráma main entrance (social), and this também will be voltada para o parque, e terá uma entrance of serviço, next as duas rampas two sub-solos I and II.

Category : Cad Architecture
Sub category : Apartment Flat
File Type : Autocad
File ID : 30934
Type : Gold
Size : 1818.58 KB
Publisher
Komal

Download Add to Library
