International Airport DWG with Full Terminal and Runway Layouts

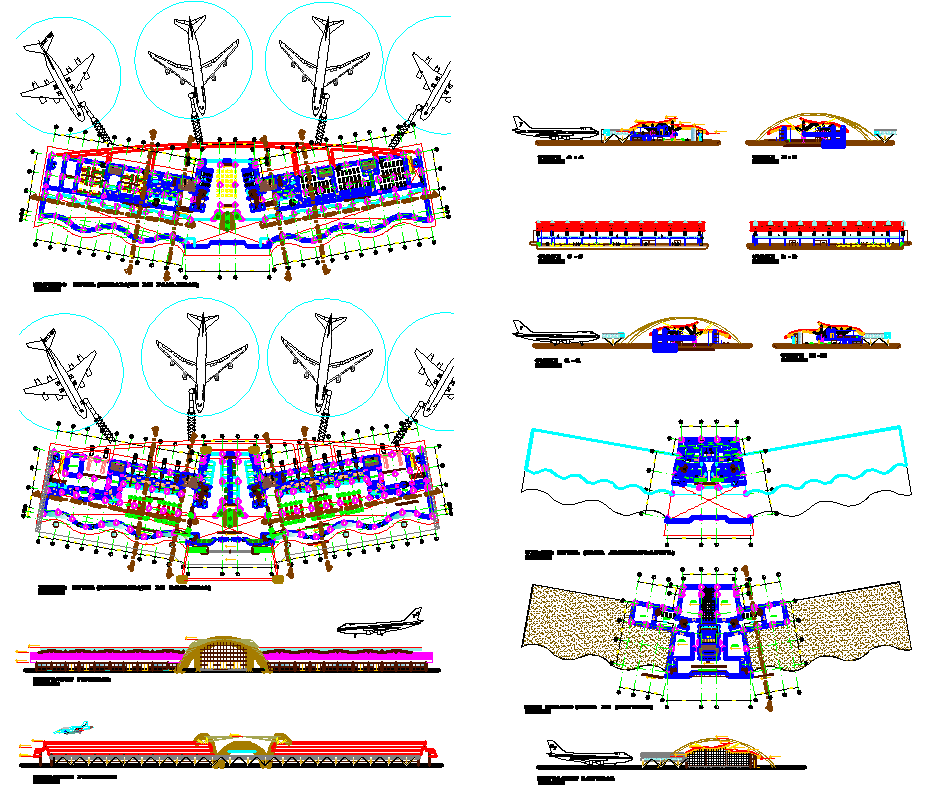

This International Airport Design DWG file provides a highly detailed architectural and infrastructural layout for a complete aviation complex. The drawing includes a full terminal master plan, aircraft circulation zones, runway alignment, taxiway corridors, and apron parking bays. Each terminal block is illustrated with functional zoning for arrivals, departures, security halls, baggage areas, lounges, boarding gates, and service facilities. The site plan also showcases curved terminal geometry, landscape integration, and support buildings positioned along a central access spine. Multiple runway safety radii, aircraft maneuvering circles, and apron dimensions are clearly represented for accurate planning.

The DWG further includes detailed elevations, cross-sections, and roof profiles showing the aerodynamic form of the terminal structure, including vaulted roof canopies, glazing panels, façade treatments, and structural beam systems. Several front and side elevations illustrate aircraft-scale proportions, terminal heights, and visual massing. Additional terminal interior sections highlight passenger flow, multi-level circulation, and technical service corridors. This comprehensive drawing is ideal for architects, civil engineers, airport designers, and planning consultants who require an editable and professional base model for aviation projects. Subscribers on Cadbull gain complete access to modify, integrate, or upscale this airport design for large-scale infrastructure planning and modern airport development.
