Brick Work Section Detail with PVC Window and Insulation in CAD File

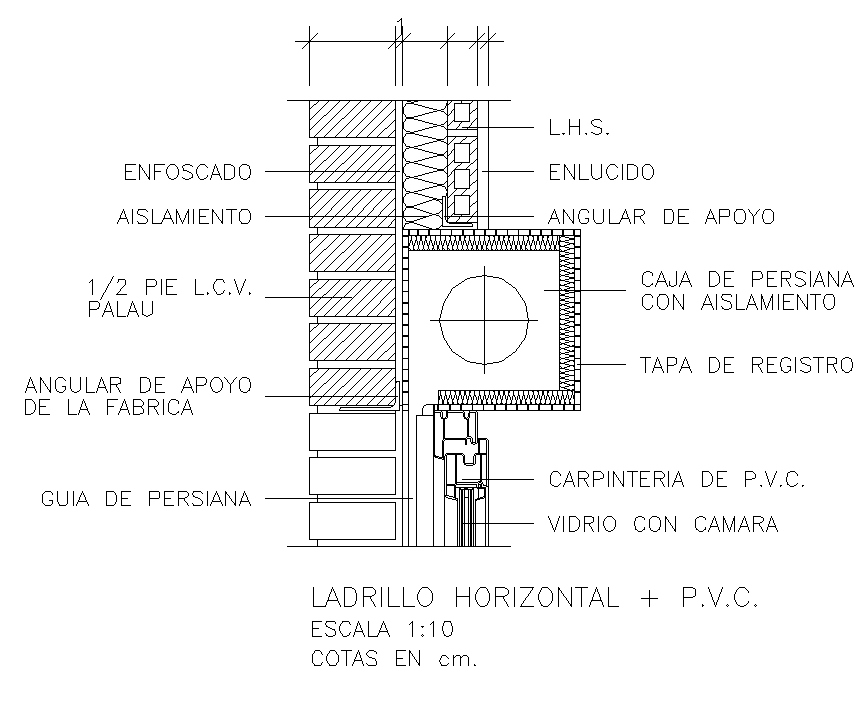

This AutoCAD DWG drawing of brick work detail showcases a precise horizontal brick section with PVC window frame integration and thermal insulation layers. The design includes multiple structural and finishing components, such as enfoscado (plastering), aislamiento (insulation), PVC carpentry frame, and angular de apoyo for wall support. The drawing is scaled at 1:10, ensuring exact proportional representation of each construction element.

It also highlights the roller shutter box with insulation (caja de persiana con aislamiento), double-glazed glass (vidrio con cámara), and brickwork pattern (L.C.V. Palau). This section drawing provides a complete reference for architects, civil engineers, and construction professionals to understand the junction between masonry and window systems.

The DWG file is ideal for architectural detailing, wall insulation layouts, and brick structure design studies. Professionals using AutoCAD, Revit, or SketchUp can modify it easily for building elevation or section documentation. This drawing ensures accuracy for brick masonry construction projects and demonstrates how traditional materials can be combined with modern PVC systems for durability and energy efficiency.
