Three Storey Modern House AutoCAD DWG Plan with Elevation and Sections

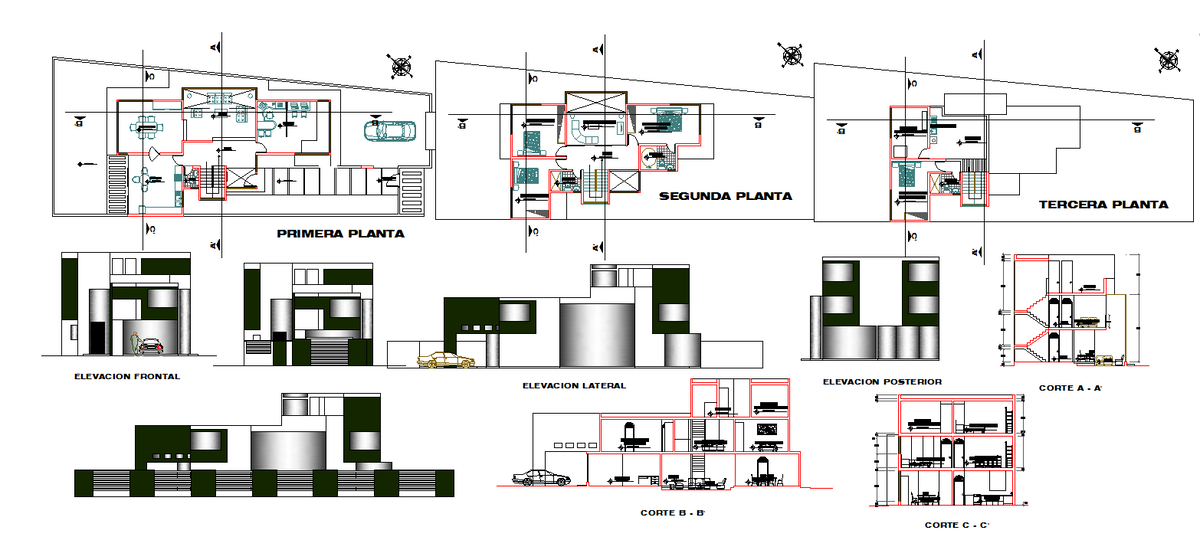

This AutoCAD DWG file presents a three-storey modern residential house design with complete floor plans, front and side elevations, and sectional drawings. The plan layout showcases a smart spatial arrangement for functional living, featuring bedrooms, bathrooms, a kitchen, a living room, and a car parking space on the ground level. Each floor is designed with optimal circulation and lighting considerations.

The first floor plan includes the main living areas and kitchen, while the second and third floors display private zones such as bedrooms, study areas, and terraces. The front and side elevations highlight a contemporary architectural style with clean geometric forms, textured finishes, and a balanced color scheme. The sectional details (A-A, B-B, C-C) illustrate vertical circulation, staircase positioning, and height proportions clearly, aiding construction accuracy.

This file is ideal for architects, civil engineers, and design professionals seeking reference for modern residential structures. It is fully compatible with AutoCAD, Revit, and SketchUp, offering precise dimensional and construction detail for 3D modeling and visualization.
