Terrace Floor Drain Detail Plumbing Layout Section Design Plan

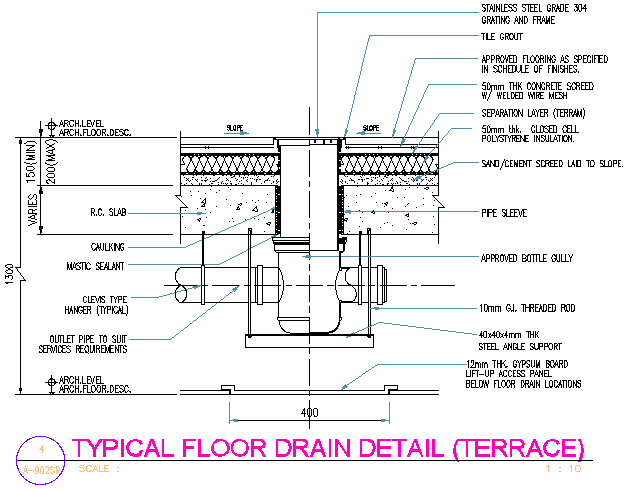

This CAD file presents a detailed terrace floor drain layout including section views, drainage pipe connections, and waterproofing layer configuration. The drawing highlights RCC slab, insulation layers, screed slope, and grating assembly with precise dimensions for accurate plumbing design. It includes pipe routing, sealing details, and structural integration for efficient water drainage planning. Clean annotations and an organized layout support easy AutoCAD drafting. Ideal for engineers and designers working on terrace drainage systems, waterproofing, and plumbing detail projects.
