This AutoCAD commercial building plan provides a complete multi-storey layout, including basement, ground floor, mezzanine, first and second floors, and third to sixth floors, making it ideal for <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 0, 0);">architects</a>, civil engineers, and design professionals. The site plan shows a 26 ft 6 in by 32 ft plot totaling 848 sqft, located on a 150 ft wide main road with a secondary 20 ft wide access road for smooth commercial movement. The ground floor includes two shops measuring 12 ft by 22 ft and 13 ft by 16 ft 6 in, supported by an internal staircase and passage area sized 16 ft 6 in by 10 ft. The plan also highlights projection areas of 214 sqft and 57 sqft on upper floors, providing extended usable spaces. The basement layout is fully defined with an approved footprint, making it suitable for storage or service utilities.The upper floors include spacious hall layouts such as Hall 1 at 13 ft 6 in by 25 ft and Hall 2 at 14 ft 6 in by 20 ft 6 in, along with a 7 ft by 5 ft lift that ensures smooth vertical circulation throughout the building. The drawing also details R.C.C. <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 0, 0);">structural </a>elements, including 6 in by 18 in beams, 6 in thick slabs, and multiple 6 in by 9 in lintels placed across all floors for accurate execution. Window and ventilation sizes such as W1 at 5 ft by 4 ft, W2 at 4 ft by 4 ft, and vents like V1 at 3 ft by 1 ft 6 in are clearly marked, alongside a 3 ft 6 in by 8 ft gate on the ground level. With detailed block plans for each level and a complete schedule of areas, including a total covered space of 5483 sqft, this AutoCAD commercial building plan offers all the essential data needed for professional planning, approval, and construction.

AutoCAD Commercial Building Plan with Shop Hall and Structural Detail

This AutoCAD DWG apartment floor plan illustrates a well-planned residential building layout featuring both 3BHK and 2BHK flats with efficient circulation and built-up area utilisation. The total plot area is 896 sq yds., with a built-up area of 5,150 sq.ft. per typical floor and a total of 30,660 sq ft. across six floors (cellar + ground + 5 upper levels).The 3BHK flats (Flat 01 and Flat 02) include living rooms (13'-10½"×11'-6"), dining areas (11'-0"×11'-6"), master bedrooms (13'-3"×12'-0"), guest bedrooms (12'-3"×11'-0"), and attached toilets (4'-6"×8'-6") with balconies (4'-6" wide) and sit-outs (7'-1½"×11'-0"). The 2BHK flats (Flat 03 and Flat 04) offer living/dining spaces (23'-6"×11'-6"), kitchens (7'-0"×8'-9"), and bedrooms (11'-9"×10'-6"), ensuring balanced space utilisation and natural ventilation.

3BHK and 2BHK Apartment Layout With Balconies and Wash Areas DWG

This AutoCAD DWG VRF layout plan illustrates a comprehensive air conditioning design for a corporate office building, featuring multi-zone VRF units, ducting, and refrigerant piping details. The system integrates GMV-ND224PH/A-T (6.4 TR / 22.4 kW) and GMV-ND160PHS/B-T (4.57 TR / 16.0 kW) outdoor units, strategically connected through Y-branch joints and insulated copper piping to ensure high efficiency and cooling balance.The drawing specifies air ducts ranging from 16"x8" to 28"x14", with airflow capacity up to 2352 CFM, ensuring optimal air circulation across meeting rooms, open workstations, and executive cabins. Return air ducts, grilles, and diffusers are precisely positioned to maintain consistent temperature and ventilation. The system layout also includes indoor units (3.2–6.4 TR) serving separate zones with 45° and 60° duct turns for efficient distribution and balanced F/U load of 61.5 kW.Designed for architects, HVAC consultants, and MEP engineers, this DWG file provides a complete corporate HVAC solution, ensuring both comfort and energy performance in office environments.

Corporate Office VRF Air Conditioning Layout With Multi Zone Units

This AutoCAD DWG house plan represents a two-floor modern residential design with an overall built-up area of 2800 sq.ft, ideal for architects, civil engineers, interior designers, and builders. The ground floor features a spacious living room (4.6×5.0 m), dining hall (4.0×3.8 m), kitchen (3.2×3.6 m), guest bedroom (3.5×3.8 m) with attached toilet (1.8×2.2 m), and a sit-out (2.0×3.0 m) that connects to the porch. The first floor includes a master bedroom (4.5×4.0 m), children’s bedroom (4.0×3.8 m), balcony (1.2 m wide), family living space (4.0×3.6 m), and open terrace for natural lighting and ventilation. This drawing is ready for modification in AutoCAD, Revit, 3ds Max, or SketchUp, making it a perfect choice for duplex residential projects.

AutoCAD 2 Floor House Plan 2800 Sqft With Kitchen Dining and Balcony

This AutoCAD DWG duplex house plan displays a functional two-floor residential layout ideal for architects, civil engineers, and interior designers. The ground floor includes a living room, dining space, main kitchen, bedroom, attached toilet, verandah, and staircase area designed for open circulation. The first floor features two bedrooms with attached toilets, a family living area, balcony, and an open terrace that enhances cross ventilation and natural light.

AutoCAD FIle of Duplex House Plan with Bedrooms Kitchen and Terrace

This AutoCAD DWG house plan features a modern two-floor residential design created for architects, civil engineers, and interior designers. The drawing includes both ground floor and first floor layouts, ideal for planning and execution of residential projects. The ground floor layout contains a spacious living room, dining area, main kitchen, guest bedroom, toilet, and verandah. The first floor includes family living, balcony, bedrooms with attached toilets, and open terrace for outdoor leisure.

AutoCAD Two Floor Modern House Plan with Living and Kitchen Area

This AutoCAD General Notes drawing details RCC design and construction guidelines for Type-IV Quarters at NSG Campus, Lekhawada, Ahmedabad (CPWD Project). It includes specifications for excavation, dewatering, PCC levelling, foundation work, reinforcement, shuttering, and formwork design. All practices follow IS:456-2000, IS:875, IS:13920-2016, IS:1893-2016, and NBC 2016 standards.Concrete grades range from M10 (non-structural) to M30 (structural elements) with 100mm PCC, Fe550 reinforcement, and strict curing and cube testing procedures. It specifies camber limits, construction joint locations, nominal cover thickness (20–75mm), special confining reinforcement, and development lengths (50d–65d) as per code.This comprehensive document defines technical quality control for road design, AutoCAD drawing, typical road design, road cross section, AutoCAD road section drawing, and urban road construction design, ensuring precision and compliance with CPWD and IS codes for large-scale EPC projects.

AutoCAD Structural General Notes for RCC Design and Construction

This AutoCAD DWG layout shows a complete residential building plan with detailed floor layouts, sections, and elevations for architects and civil engineers.

Residential Building AutoCAD DWG Layout with Floor and Section Plans

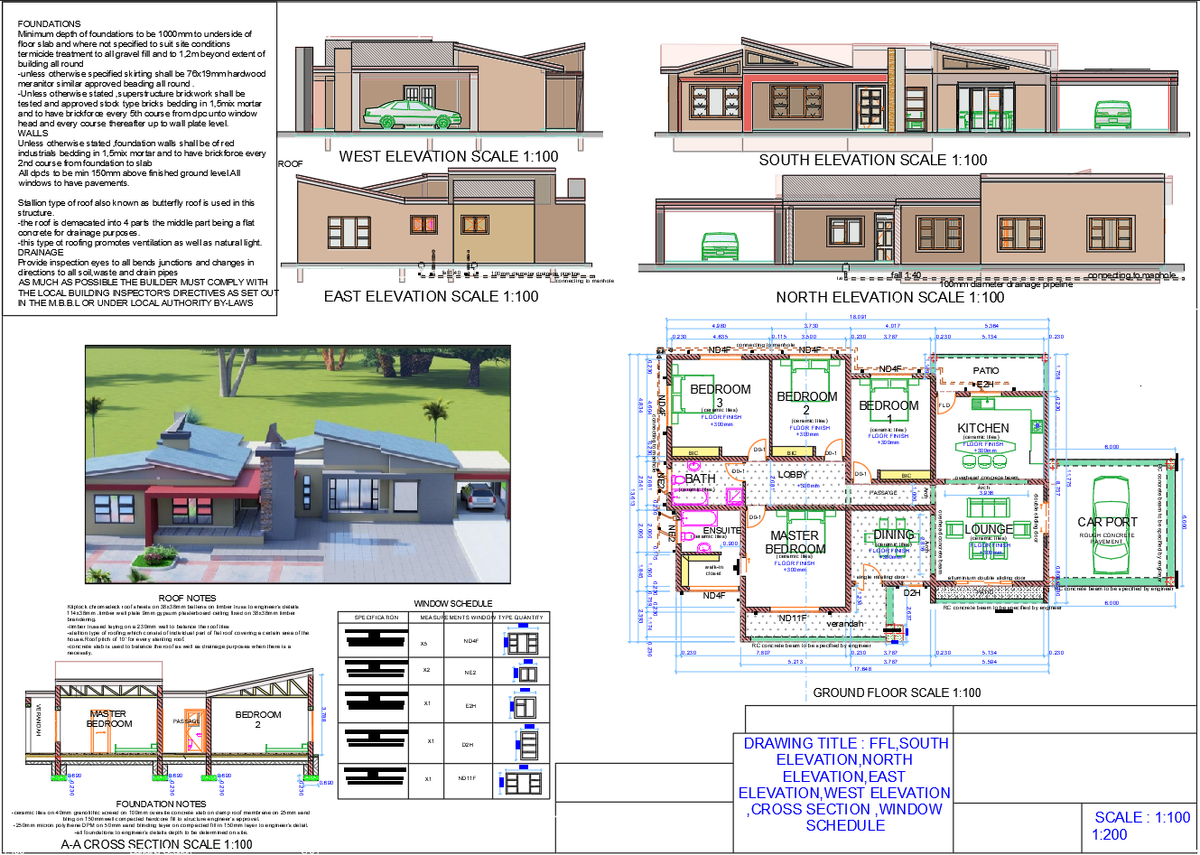

Download a single-storey residential house AutoCAD DWG plan with floor layout, elevations, and section details. Perfect for architects and civil engineers.

Single Storey Residential House AutoCAD DWG Plan with Elevations

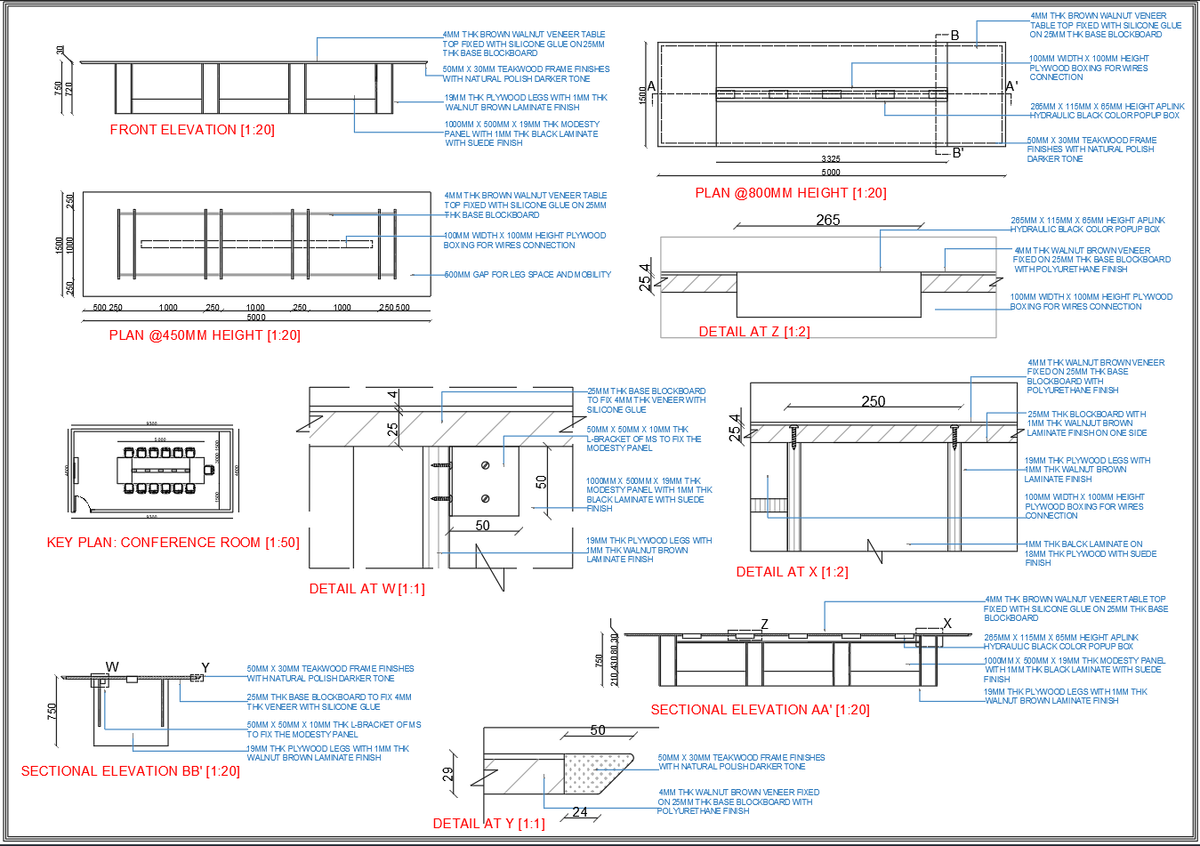

Download a conference table AutoCAD DWG plan with sectional elevations, key plan, and material details. Ideal for architects, interior designers, and furniture makers.

Conference Table AutoCAD DWG Plan with Section and Detail Drawings

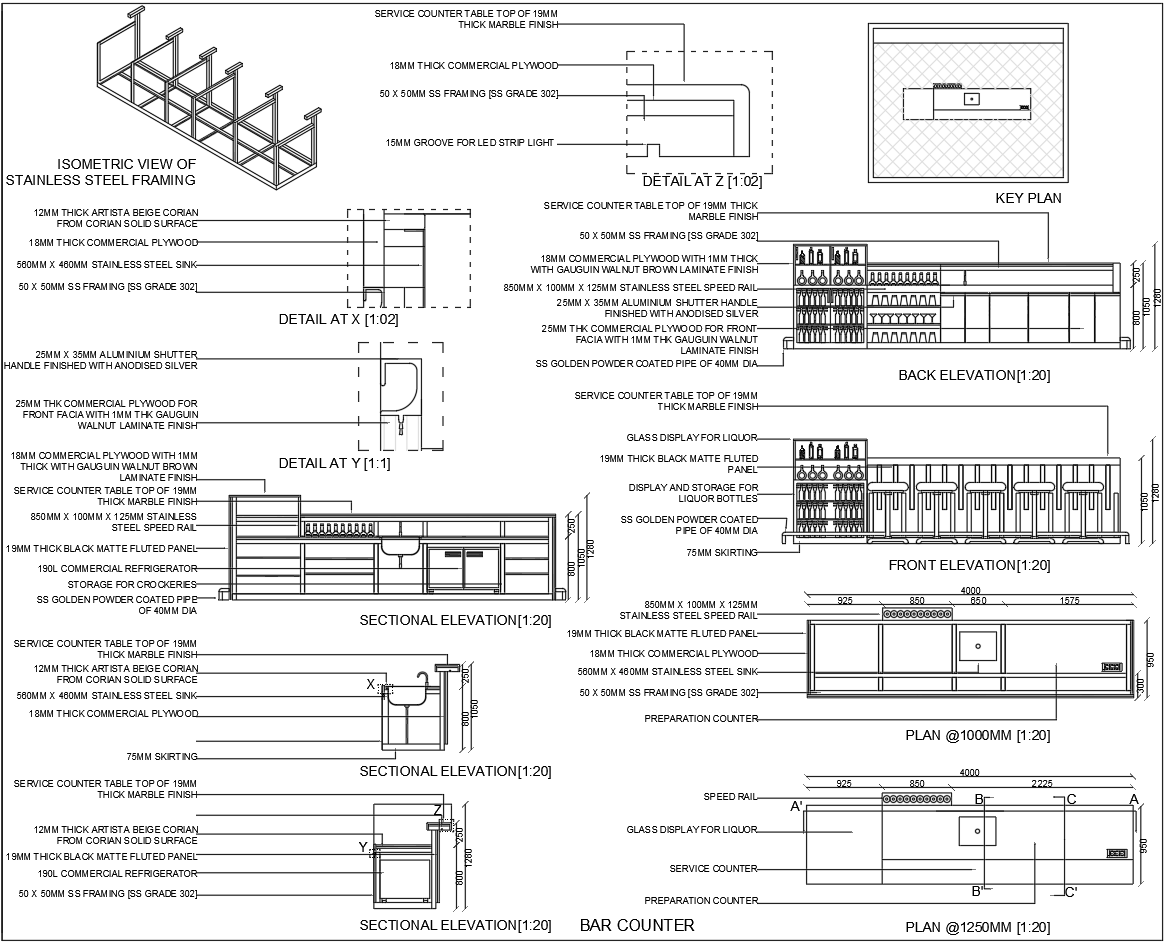

Download a bar counter AutoCAD DWG plan with isometric view, front and back elevations, and sectional details. Subscribe to Cadbull for premium interior CAD drawings.

Bar Counter AutoCAD DWG Plan with Elevation and Section Details

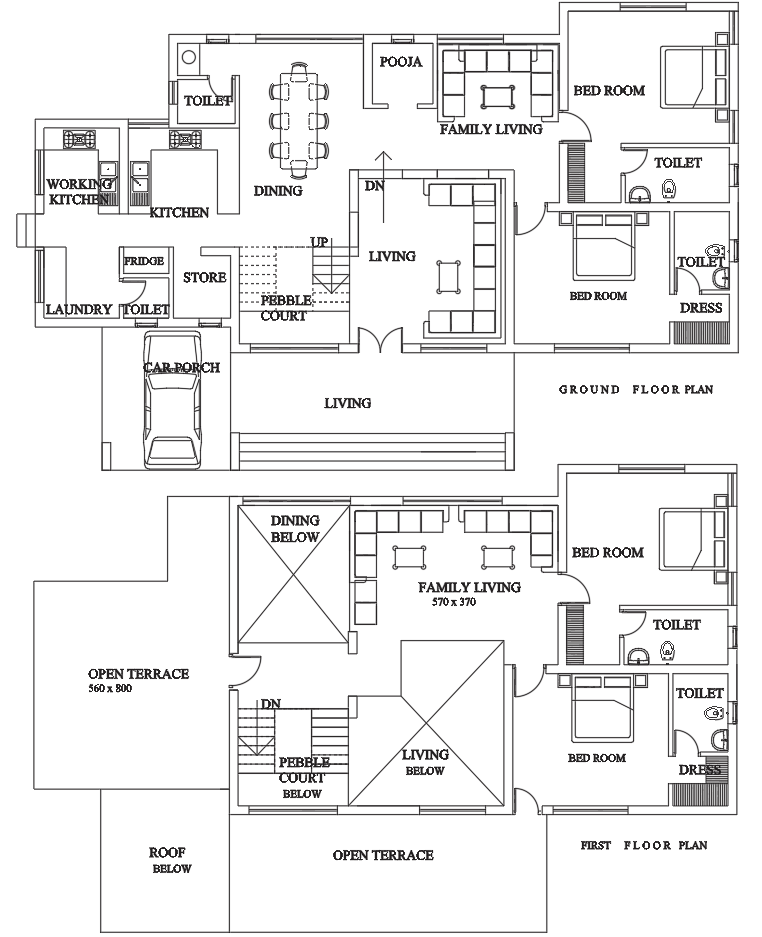

Download the AutoCAD DWG file for this detailed ground and first-floor house plan. Features include Living, Dining, Pooja, Working Kitchen, and Open Terrace spaces. Essential for design professionals.

Modern Two Story House Plan DWG: Pooja, Kitchen-Open Terrace Layout
