Deep Well Water Plan Section with Pump and Dimension Details

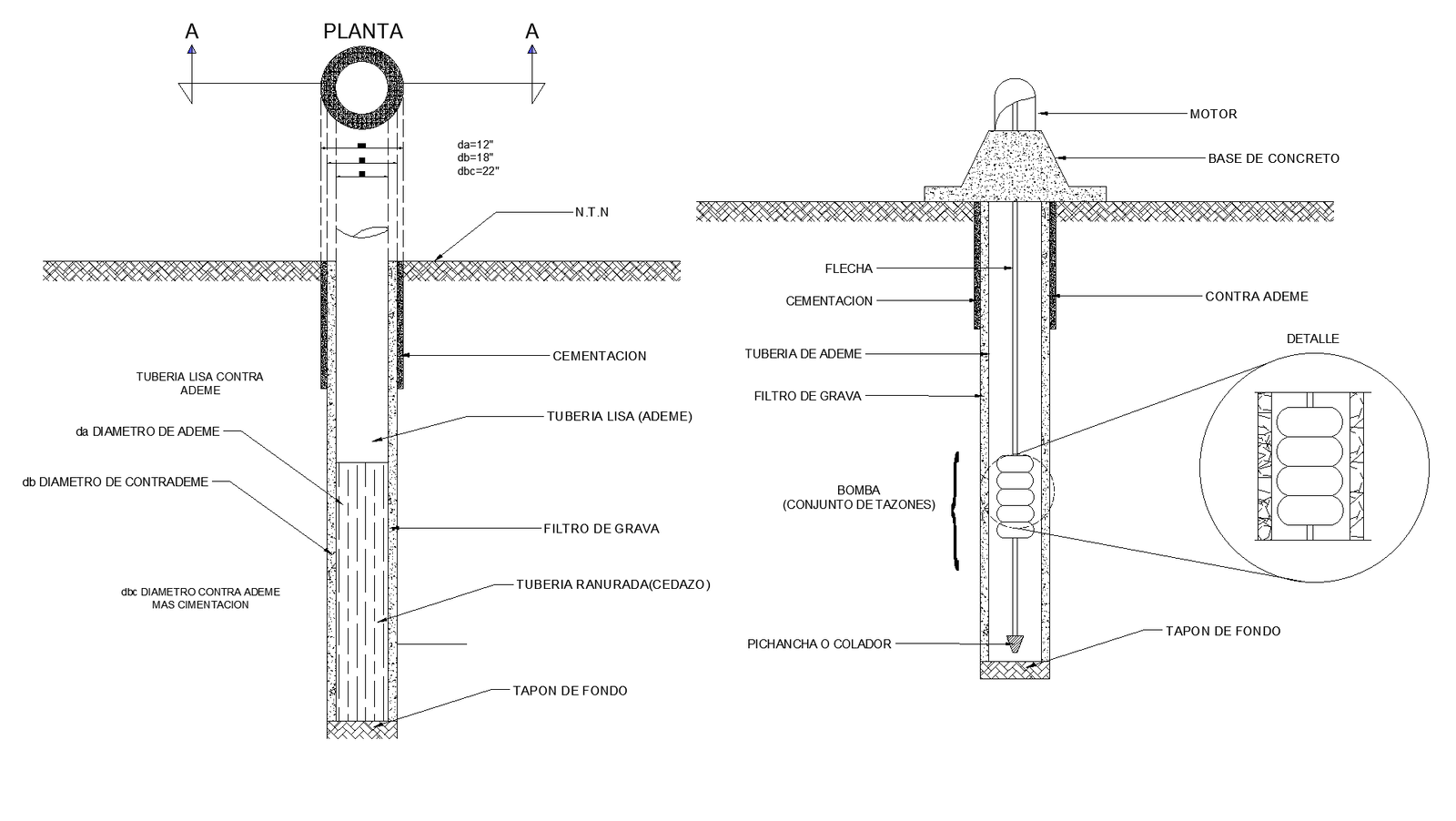

This AutoCAD drawing presents a deep well water plan with detailed sections and elevation, including pump installation and dimension specifications. The drawing shows a well shaft layout with inner pipe, outer casing, and gravel filter arrangement. It includes clear measurements for pipe diameter, well depth, and casing thickness, along with cementation detail around the well structure. The plan also highlights the bottom plug, perforated pipe section, and filtration zone for proper water flow management using AutoCAD files and cad files.
