Residential House Elevation Design with Roof Height CAD Plan

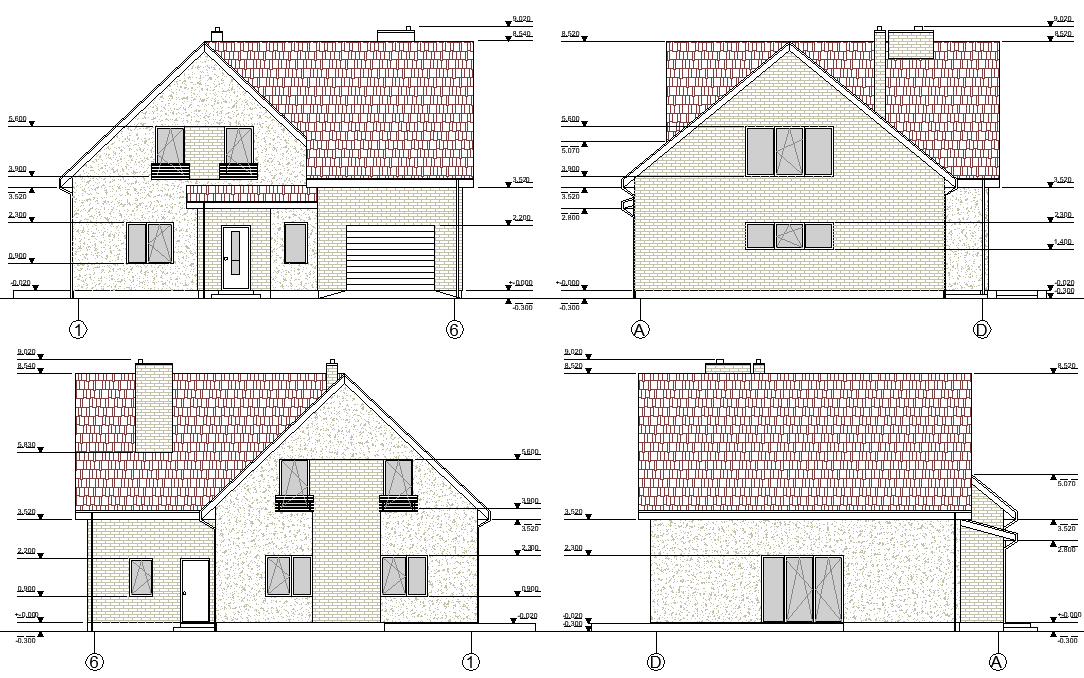

This residential house elevation drawing is a detailed AutoCAD DWG file prepared for architectural design and construction reference. The drawing includes front, rear, and side elevation views with clearly marked height levels, roof slopes, window placements, and wall finishes. It shows sloped tiled roofing, chimney positioning, balcony railings, garage shutter layout, and entrance door alignment. Vertical measurements such as plinth level, sill height, floor level, roof ridge height, and parapet levels are accurately mentioned. External façade materials, brick textures, plaster finishes, and elevation proportions are represented for realistic building visualization. The drawing also includes sectional reference marks and grid indicators for proper alignment.

The elevation plan displays structural height markings such as 2.300 meter, 3.520 meter, 5.070 meter, and 8.520 meter levels for construction accuracy. Window sizes, balcony projections, and roof overhang dimensions are clearly indicated. Side and rear elevations show service access, ventilation openings, and slope drainage direction. The design supports standard residential construction practices and helps in understanding exterior massing and symmetry.
