Valve Detail DWG with Dimensions, Table Specifications and Layout

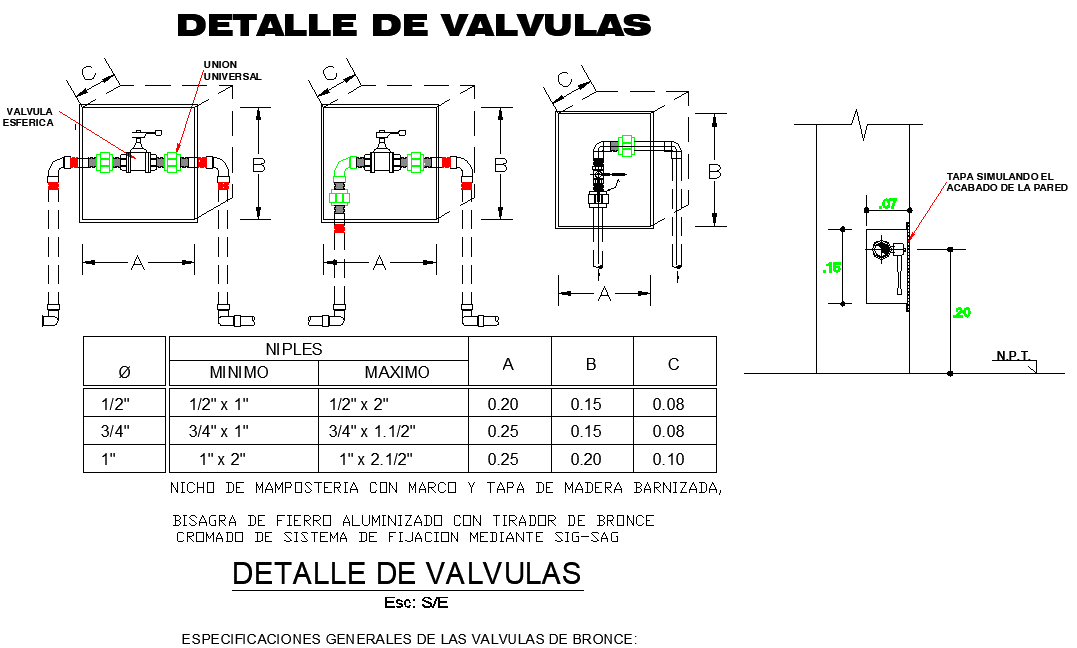

This Valve Detail DWG file provides a complete technical layout for bronze valves with detailed table specifications, dimensions, and component labeling. The drawing includes multiple views of valve installation, including front, side, and sectional perspectives, ensuring that architects, engineers, and interior designers can interpret the placement, connection points, and functional specifications with precision. Each valve is annotated with dimensions for diameter, nipples, and spacing, while the included table lists minimum and maximum sizes for standard ½”, ¾”, and 1” valves.
