Restaurant Project AutoCAD DWG Plan with Circular Layout and Elevation

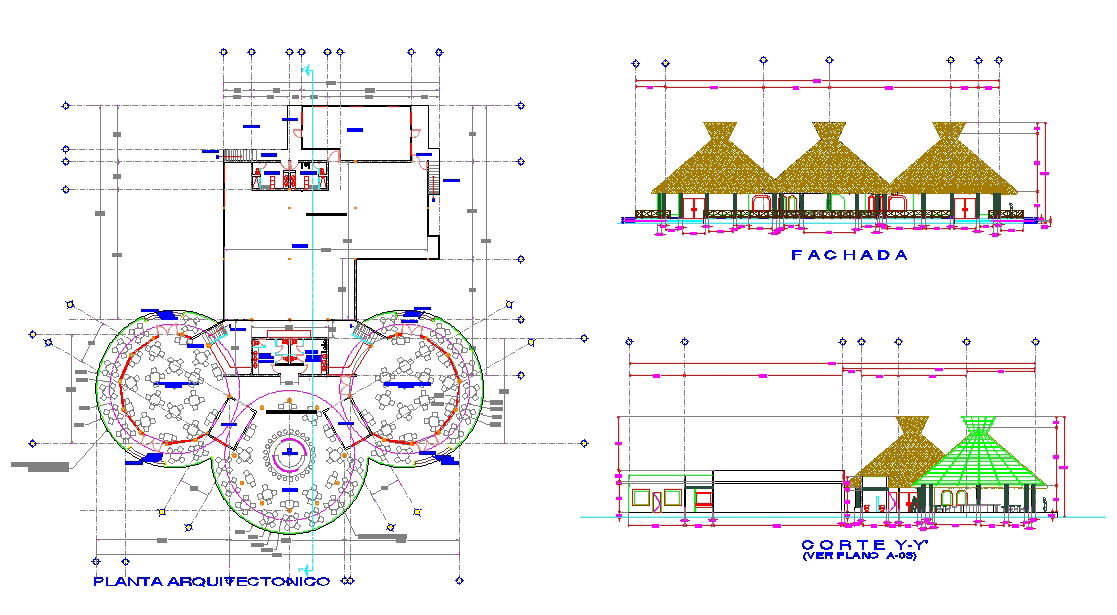

This restaurant project AutoCAD DWG file presents a complete architectural drawing set featuring a unique circular and symmetrical layout design with integrated dining zones and landscape seating areas. The plan includes a central open courtyard with three circular seating sections, service counters, a kitchen area, storage rooms, washrooms, and staff circulation spaces. The layout is designed on an approximate site size of 60 x 55 meters with organized pedestrian pathways and defined entry points. Dimension lines, column grids, wall thicknesses of approximately 230 mm, and standard floor heights of nearly 3.5 meters are clearly indicated for accurate construction planning. The drawing also highlights furniture arrangements, table spacing, and service access routes to ensure functional restaurant operations.
