Clinic Detail Drawing AutoCAD DWG with Interior Layout and Dimensions

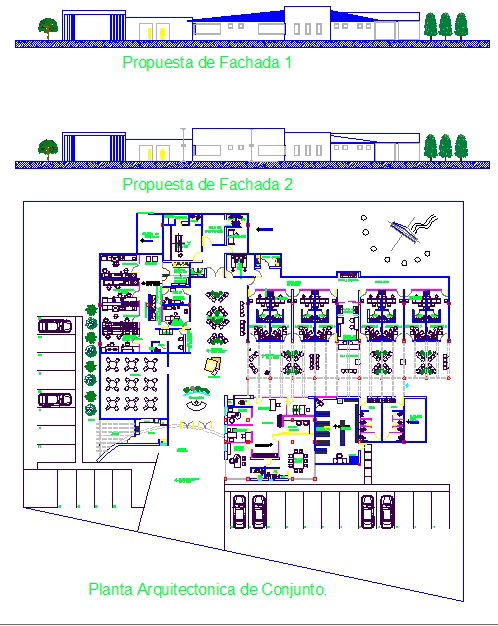

This Clinic Detail Drawing AutoCAD DWG file provides a professionally drafted healthcare interior and architectural layout with complete planning of medical service areas. The drawing includes OPD consultation rooms measuring approximately 3.0 m x 3.5 m, examination cabins, treatment spaces, and nurse stations. It also shows reception and waiting zones with seating arrangements, medicine dispensing counters, wash basin units, and storage cabinets. Toilet blocks of nearly 1.5 m x 2.1 m, internal corridors with widths of about 1.8 m, and wheelchair accessible pathways are clearly marked. Accurate dimensions, wall thickness, column grids, and electrical and plumbing service routes support precise construction and interior execution.
