Electrical House Plan DWG with Wiring Layout and Switch Dimensions

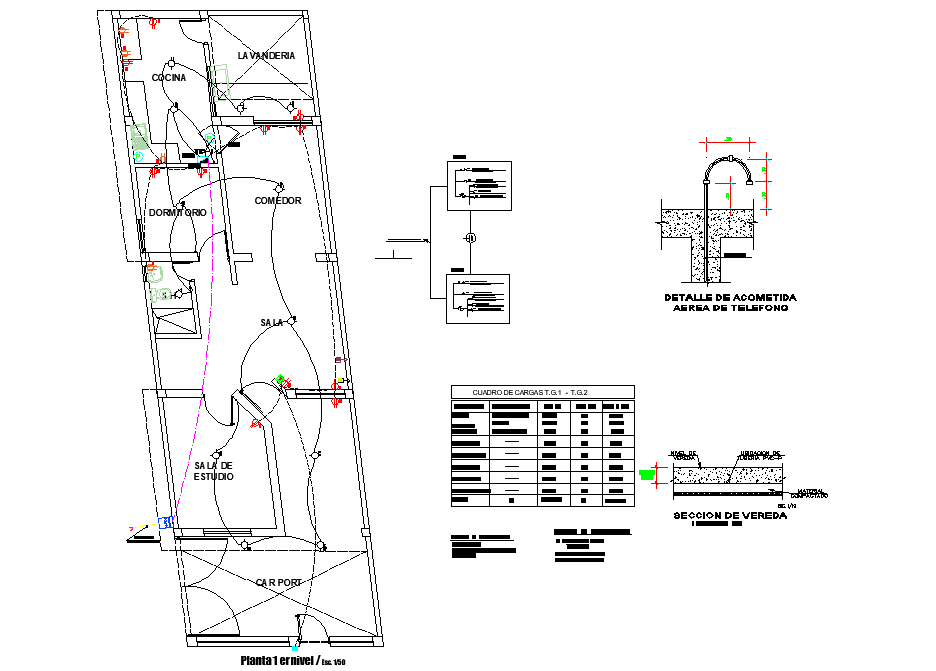

Explore a detailed electrical house plan DWG designed for accurate residential wiring layout and electrical system planning. This AutoCAD drawing includes a complete electrical layout showing lighting points, switch boards, power sockets, distribution lines, and circuit connections across different rooms. Standard installation dimensions are clearly indicated such as switchboard heights ranging from 1200 mm to 1500 mm and socket placements around 300 mm to 450 mm from floor level. The plan also illustrates wiring routes, load distribution, and connection points for safe and efficient electrical design.
