Restaurant Structural Layout Plan with Foundation Beam Column Details

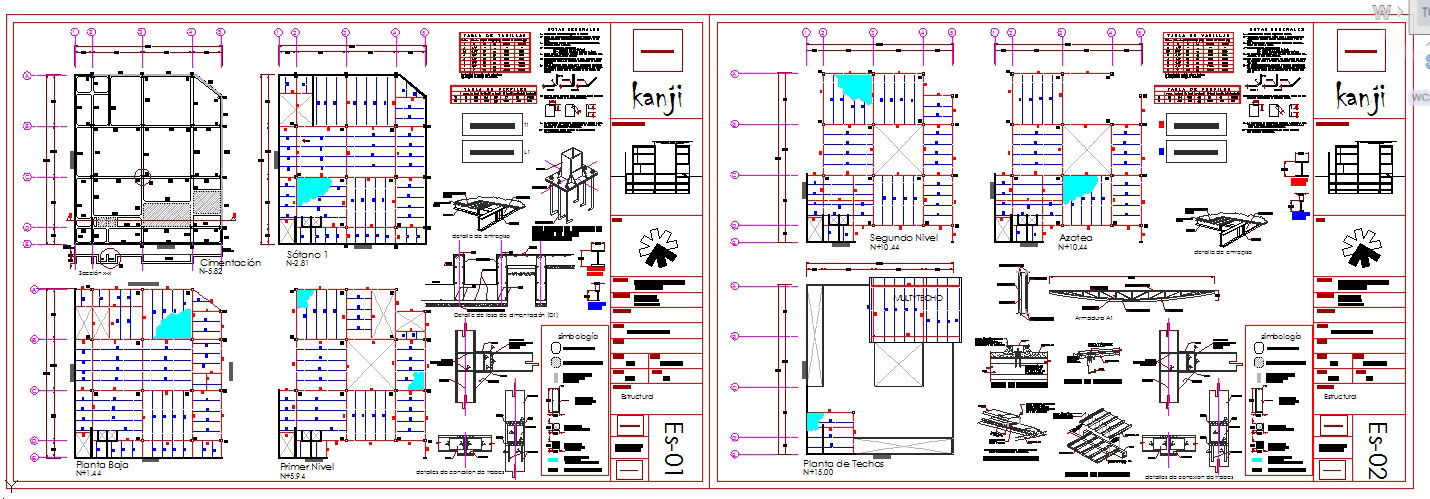

This Structure Design for Restaurant presents a complete structural layout prepared in professional AutoCAD Drawing format for architectural and construction development. The drawing includes detailed foundation plans, footing layouts, column positioning, beam framing, slab reinforcement patterns, and staircase structural details. Ground floor, first floor, and terrace structural layouts are clearly marked with grid references, load distribution paths, and reinforcement specifications. Sectional views, connection details, and construction notes are provided to support accurate execution and site coordination. Structural symbols, material specifications, and dimensional annotations ensure clarity for engineering analysis and implementation.
