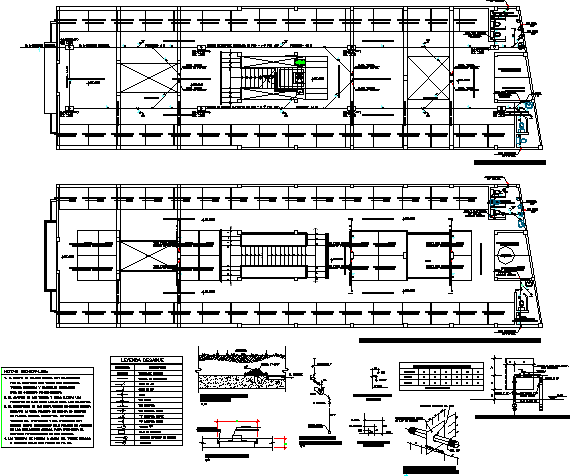

Ground and first floor plan with constructive details of shopping center dwg file


Description

Ground and first floor plan with constructive details of shopping center dwg file. Ground and first floor plan with constructive details of shopping center that includes a detailed view of main entry and exit gate, indoor staircases, elevators, lifts, shops and showrooms, corporate offices, departmental stores, brand showrooms, retails market, stores, food stores, kids fun zone, column and beam construction, floor construction and much more of floor plan details.




File Type: DWG File ID: 56556

Uploaded by:


Parth
India
